PG R-Net Seating Control Module D50919.03 for Quickie | 122194 | #RJM311

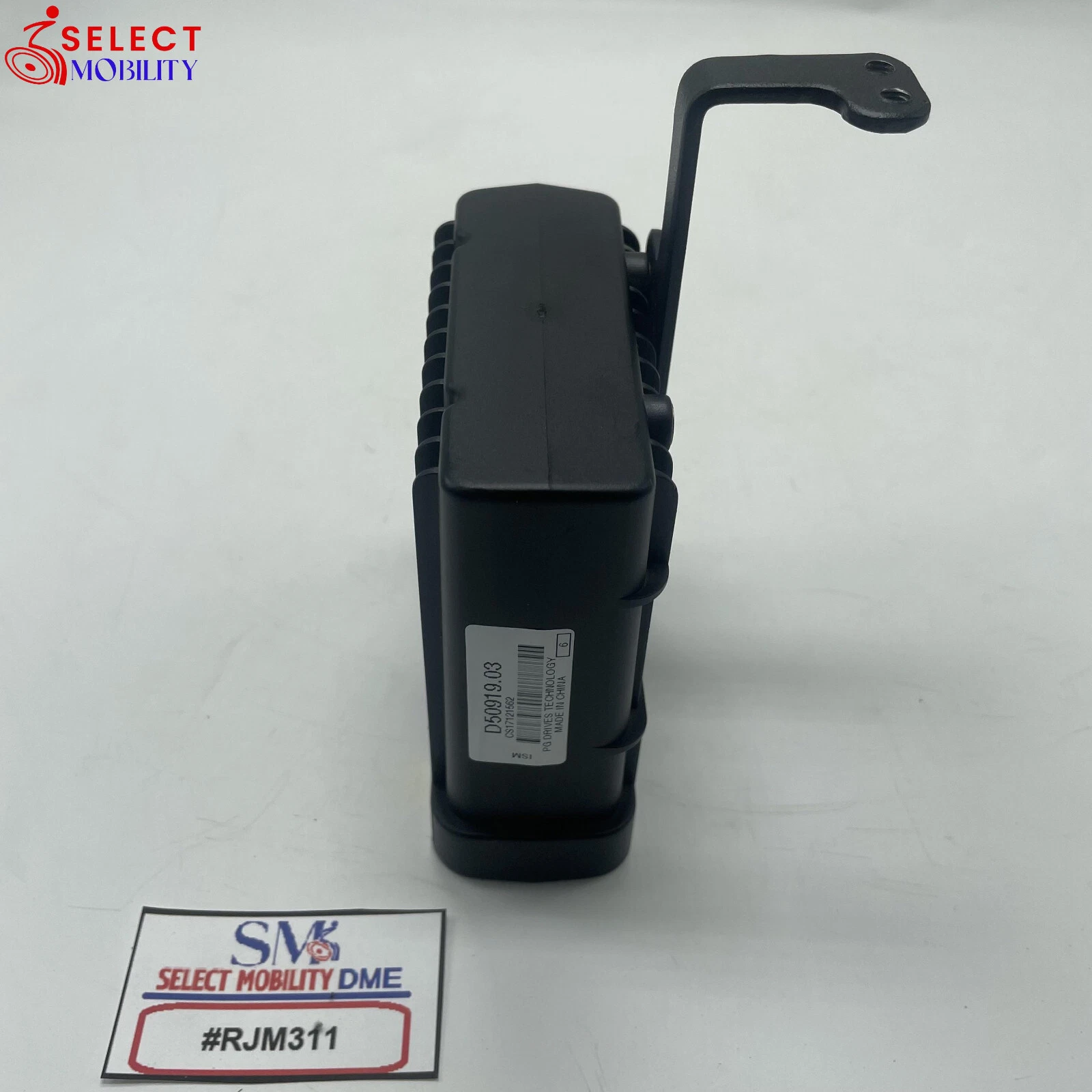

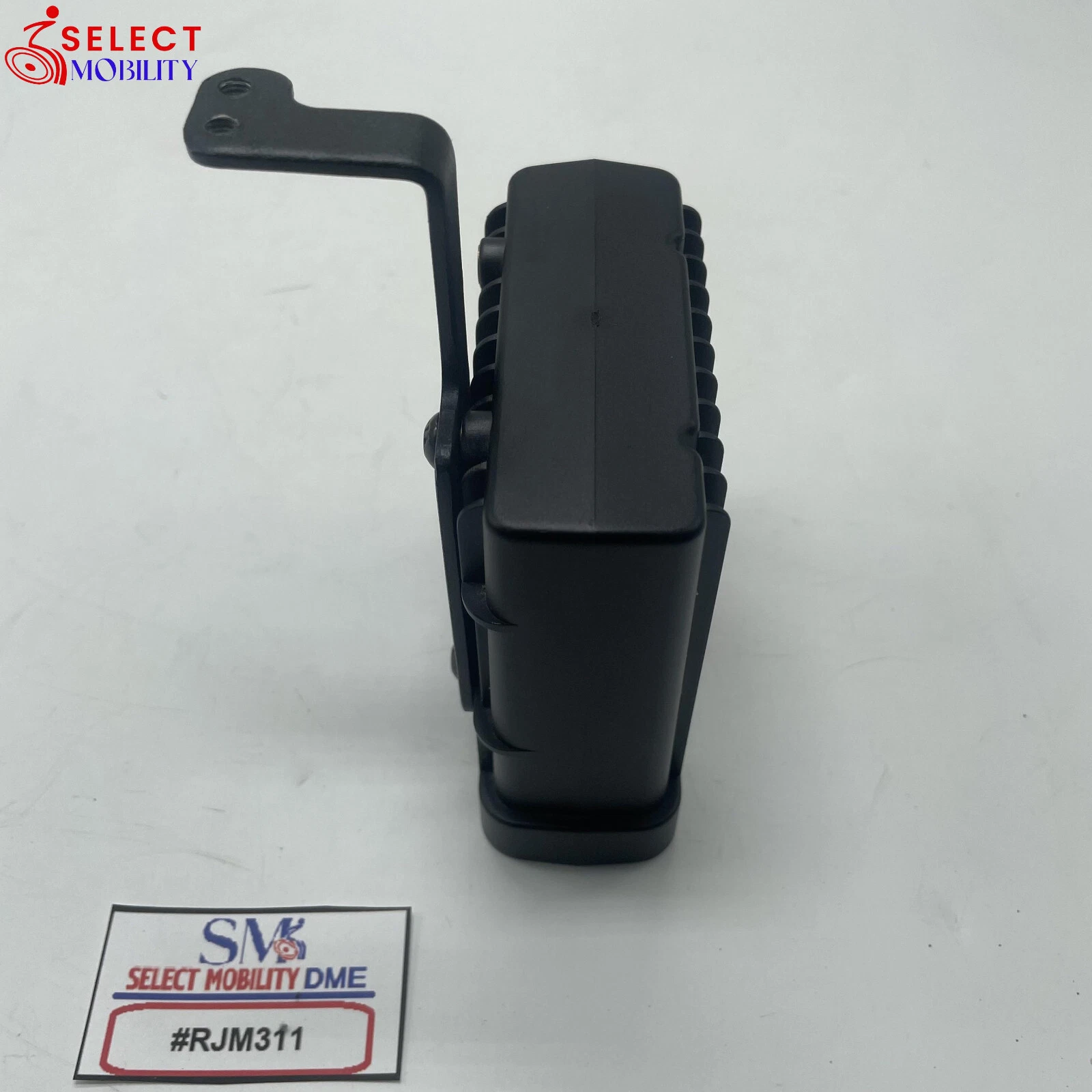

Condition: Fully tested and in 100% working order. Includes a pre-installed mounting bracket as shown in the photos.

This PG Drives R-Net ISM Seating Control Module (Part No. D50919.03) is designed for Quickie-series power wheelchairs using the R-Net platform. It acts as the interface between the joystick and actuators, enabling precise and programmable control of powered seating functions such as tilt, recline, and elevating legrests.

Ideal for Quickie power chairs configured with multiple seating actuators, this module supports multiple actuator channels and inhibit controls. This is the No-Lights version, appropriate for systems not using integrated lighting via the ISM.

Key Features:

• Supports up to 6 actuator channels (tilt, recline, elevating legs, etc.)
• Inhibit 4 & Inhibit 5 ports for accessory safety controls
• Works with R-Net joysticks and Omni modules
• Quickie/Sunrise power chair compatible (via proper programming)

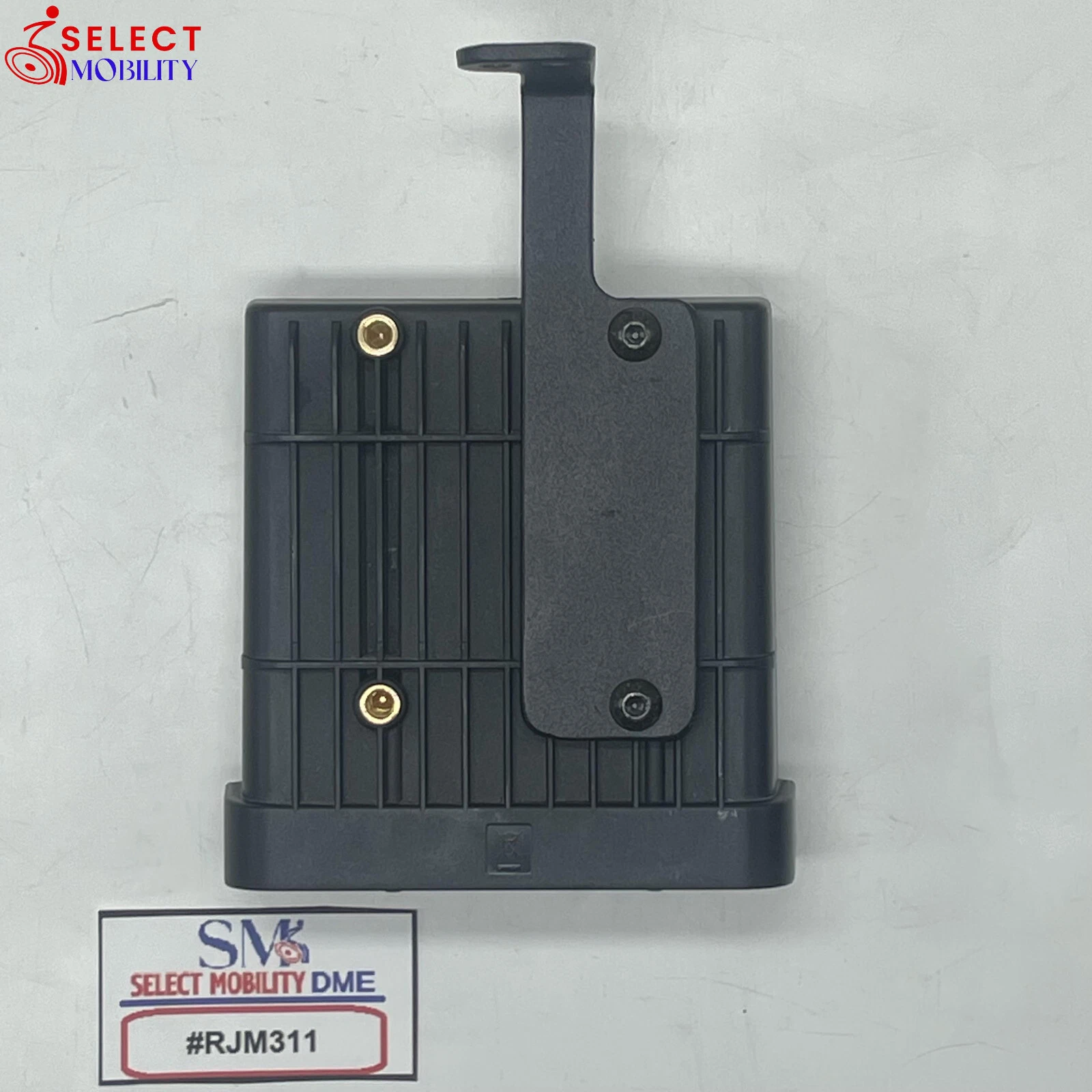

• Mounting bracket included — ready to install

Part Numbers

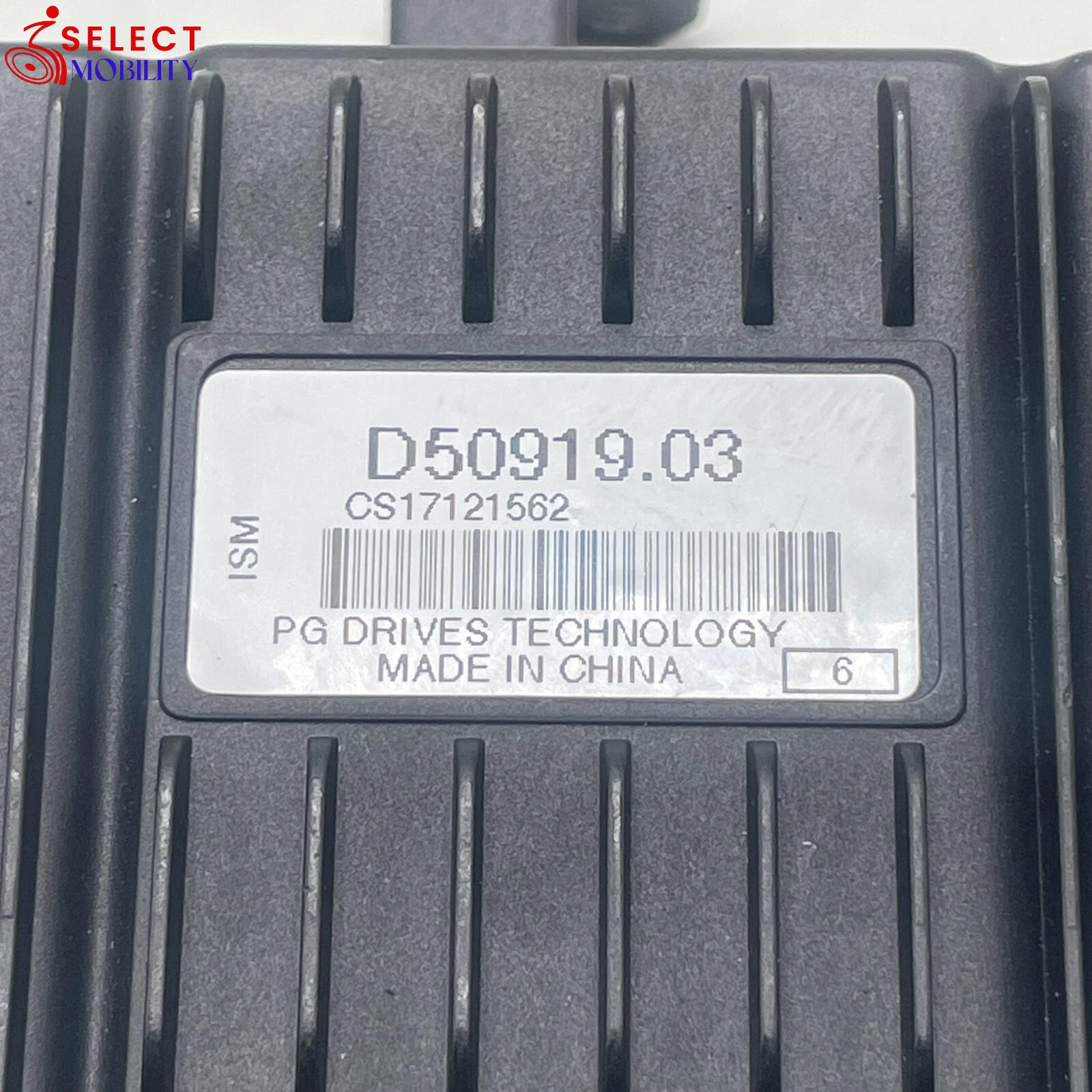

• PG Drives Part No: D50919.03
• Sunrise Medical Ref No: 122194

Compatibility

• Designed for Quickie power wheelchairs with R-Net electronics
• Commonly used in: Quickie QM-710, QM-715, Pulse, Jive, and similar Sunrise Medical models
• Compatible with PG Drives R-Net ecosystem (when configured appropriately)

Technical Overview

• Inputs: Joystick → Pin 1 (+ve), Pin 2 (-ve)

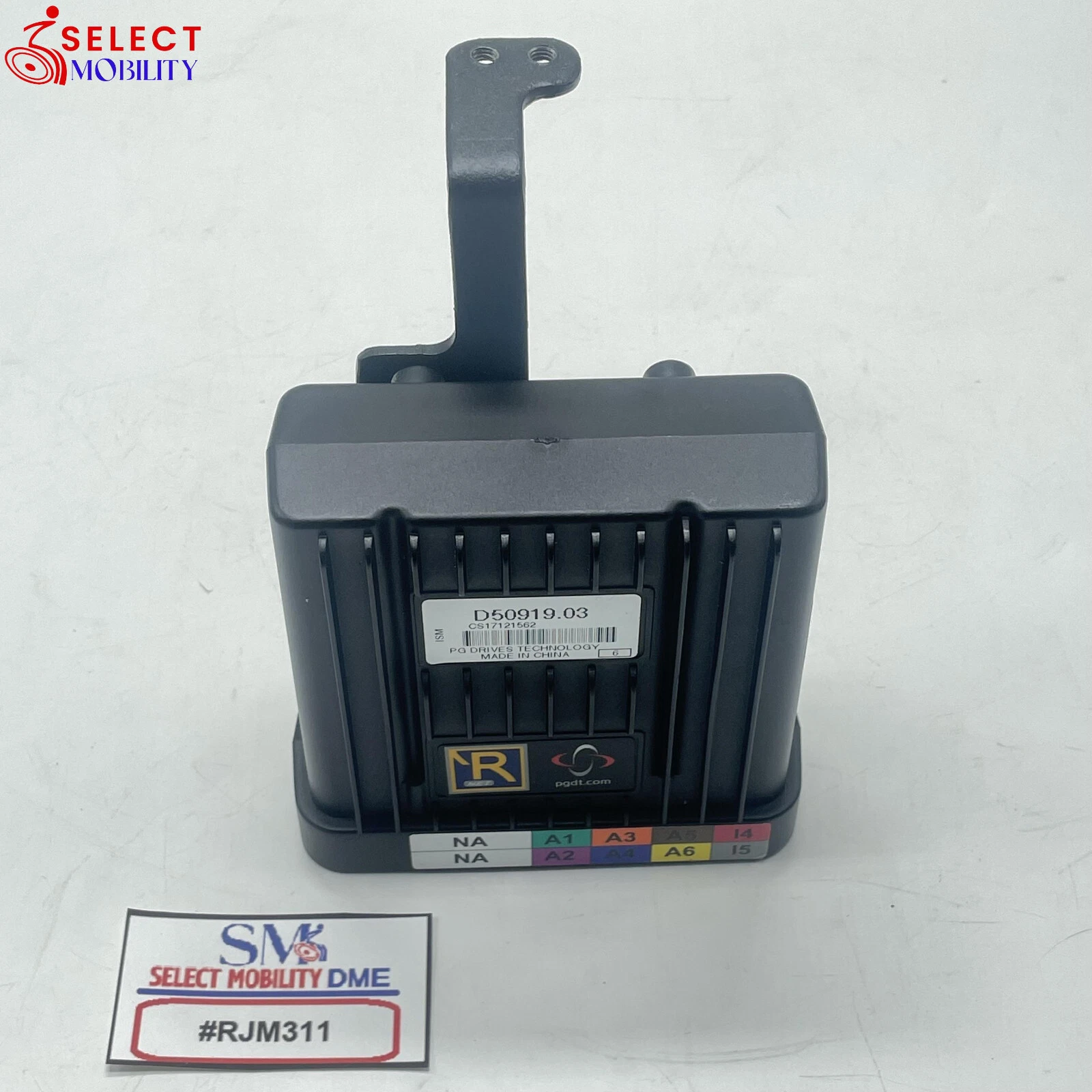

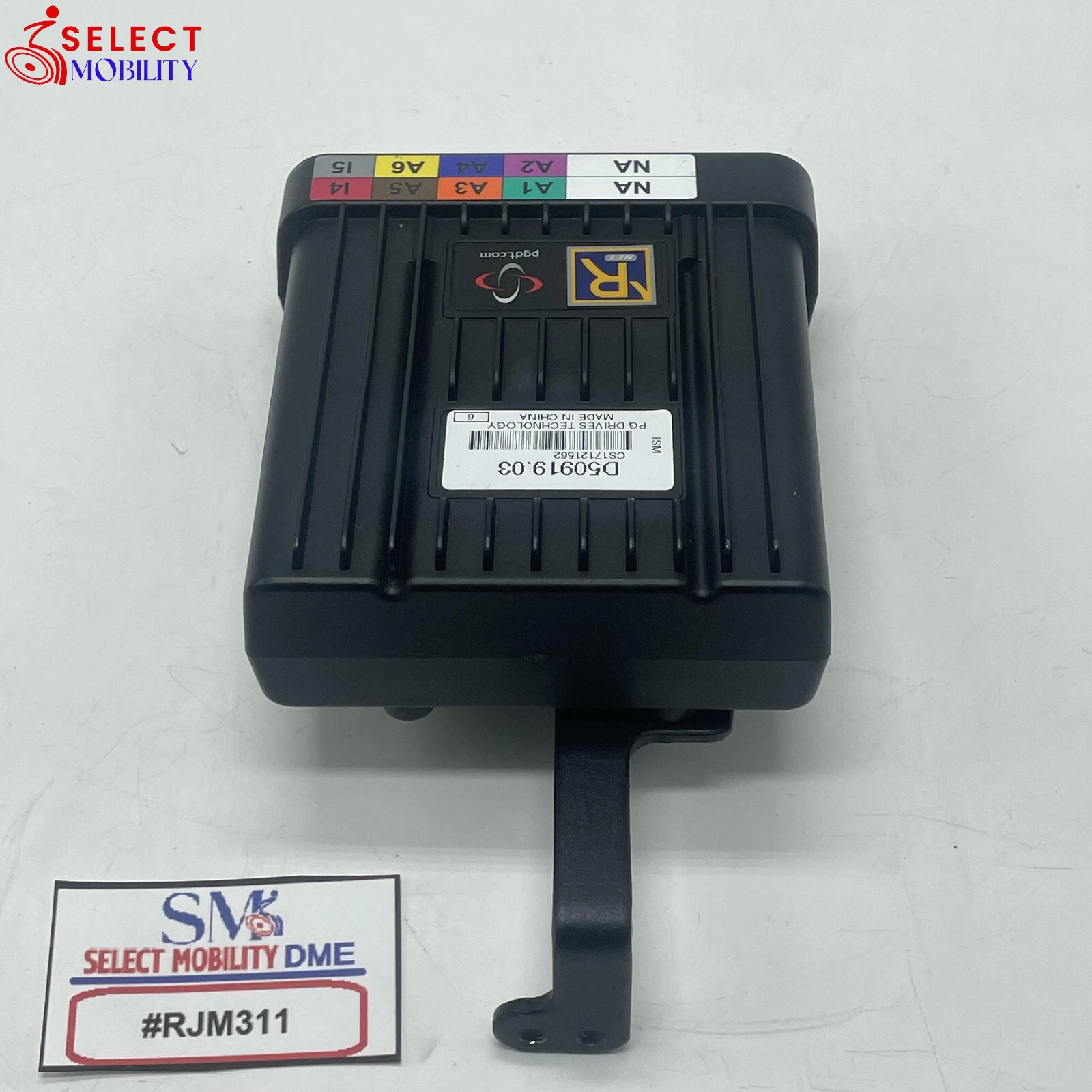

• Actuator Channels: 6 channels mapped A1–A6

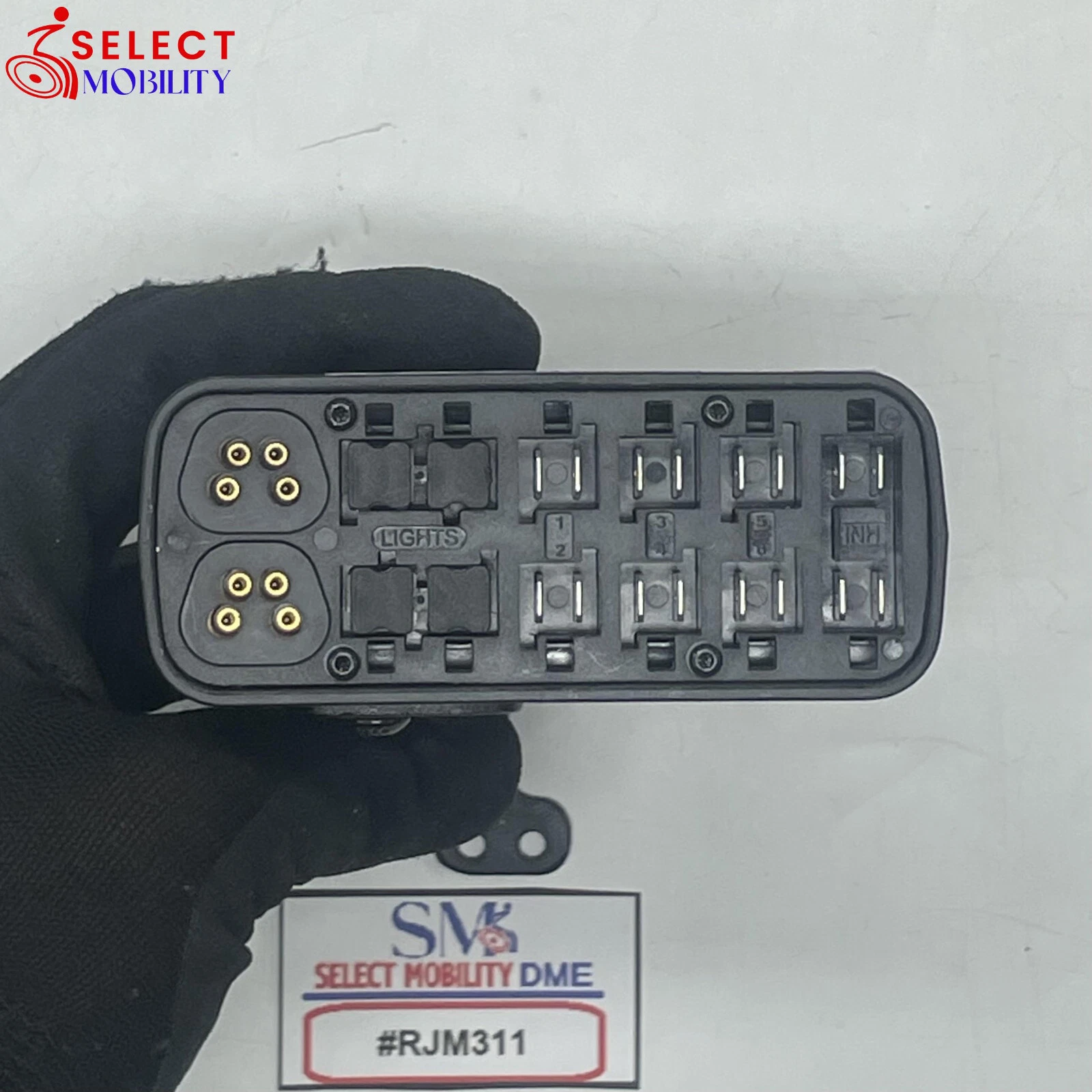

• Inhibit Ports: I4 and I5 for auxiliary functions
• Integrated feedback to joystick module for positioning

Quality Assurance Checklist

• Actuator ports and response tested
• Inhibit signal confirmed on I4 and I5
• PG Drives R-Net communication validated
• Connector integrity and casing inspected
• Mounting bracket attached securely

Shipping & Support

✔ FREE EXPEDITED SHIPPING: Orders placed before 12 PM Central ship same business day.

✔ INSTALLATION SUPPORT: We’re glad to assist with compatibility checks, programming advice, or setup help — just message us!
