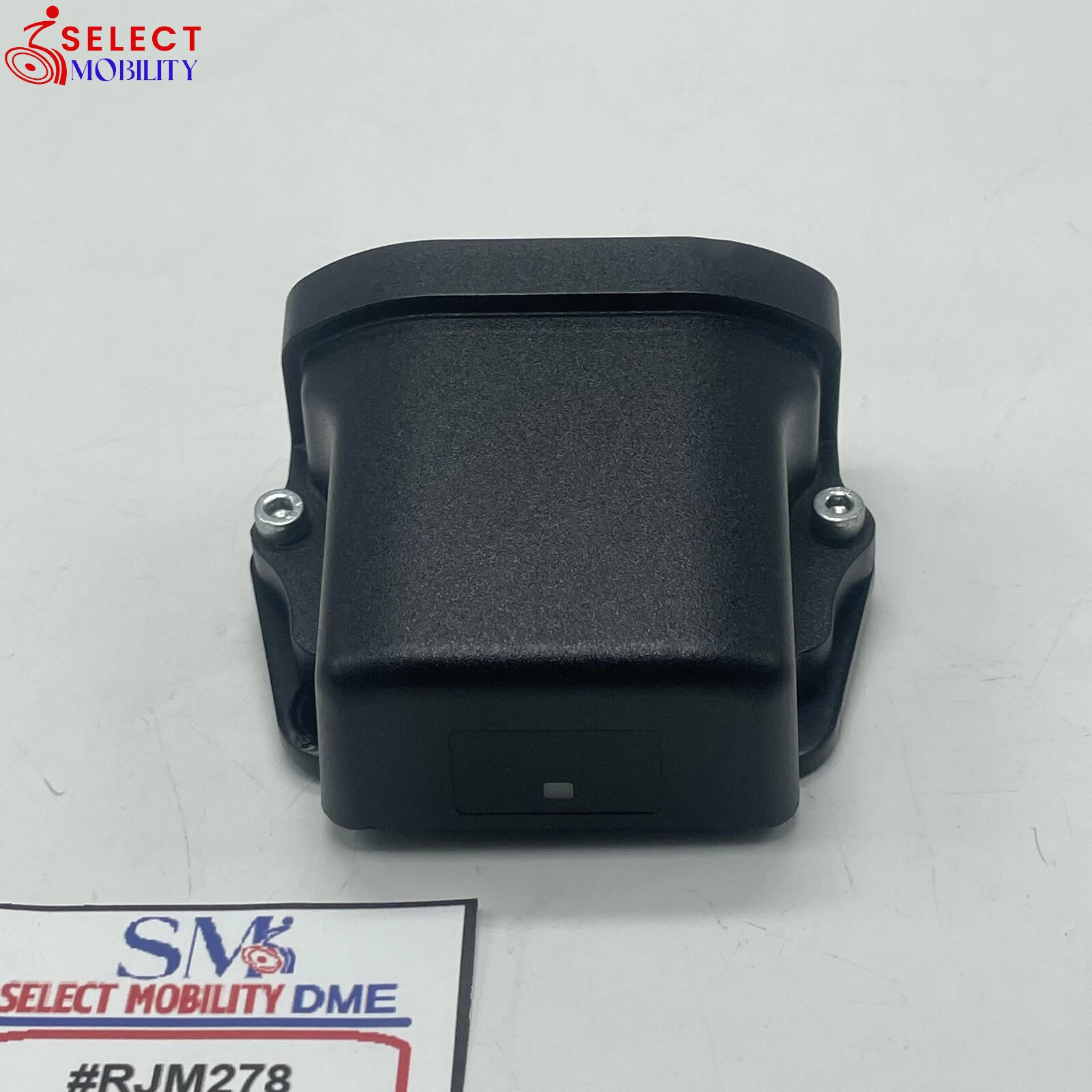

PG R-NET IDEVICE BLUETOOTH MODULE D51580 FOR PERMOBIL 614712 1831423 | #RJM278

Condition: Fully tested and guaranteed functional. Includes original mounting bracket and hardware pre-installed, ready to mount.

This R-net Bluetooth iDevice Module (PG Drives D51580.01, Permobil 614712) allows wheelchair users to operate an iPhone, iPad, or iPod using any R-net input device such as a joystick or Omni. With full access to iOS Switch Control and VoiceOver, the module enables intuitive control of your device through joystick movement or switch inputs.

Pairing is quick and simple, with no special software required. The module is compatible with all R-net-powered Permobil wheelchairs and requires no additional power source — it draws power directly from the chair’s R-net system.

Key Features:

• Enables joystick or switch control of iOS devices via Bluetooth®
• Supports both Switch Control and VoiceOver accessibility modes
• Input actions (short, medium, long) can trigger up to 3 unique iOS functions
• Pair up to 4 devices — switch between them easily
• No charging required — powered by R-net electronics

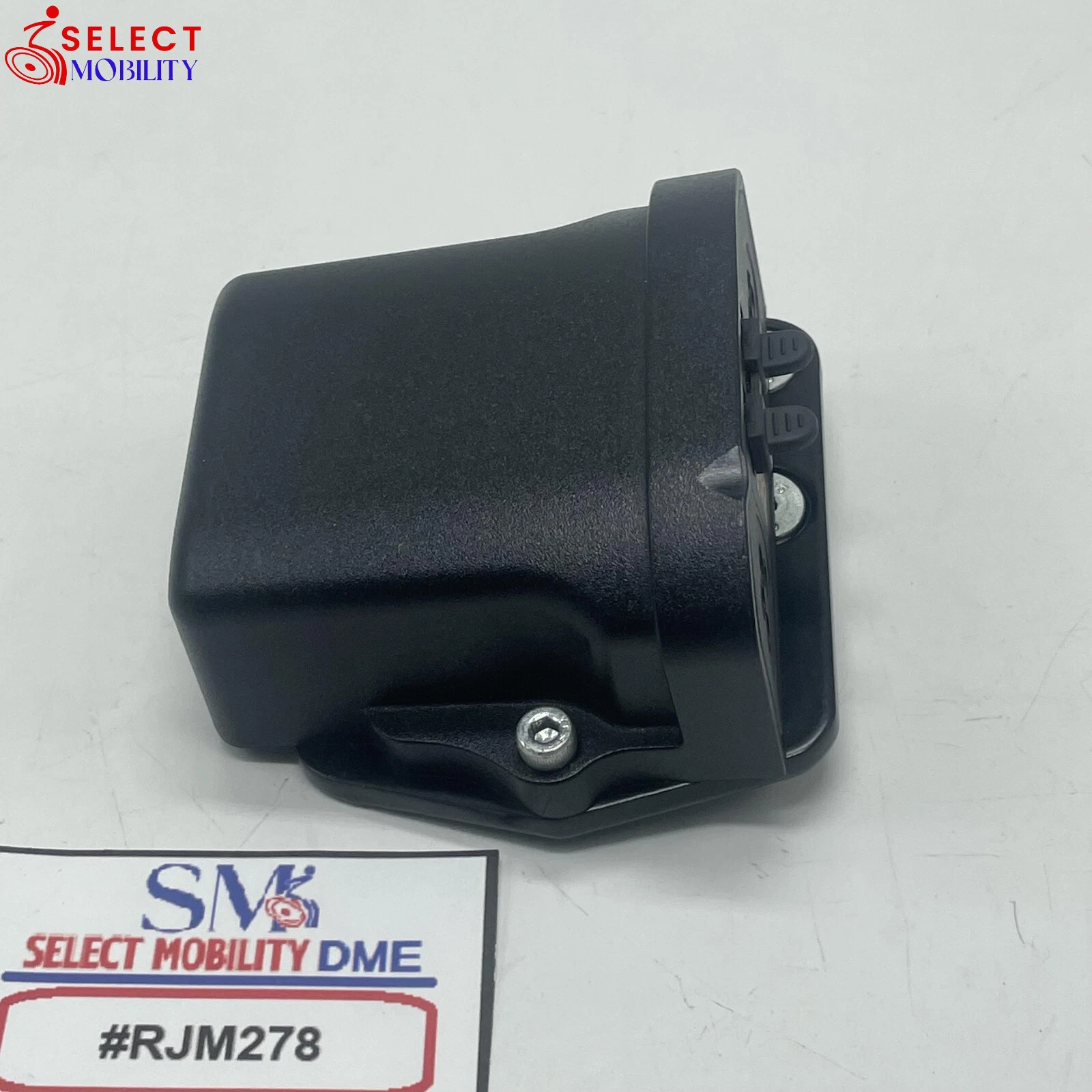

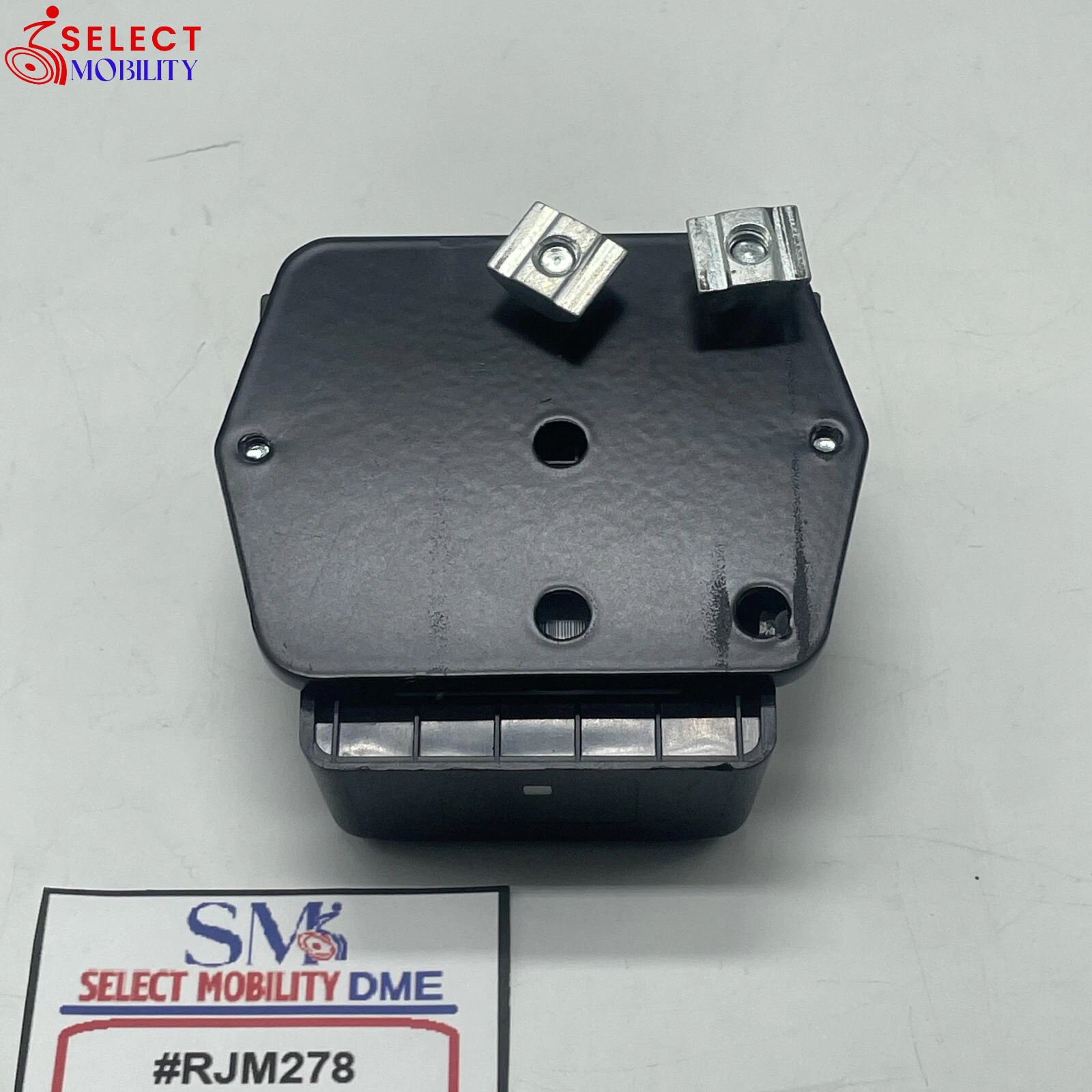

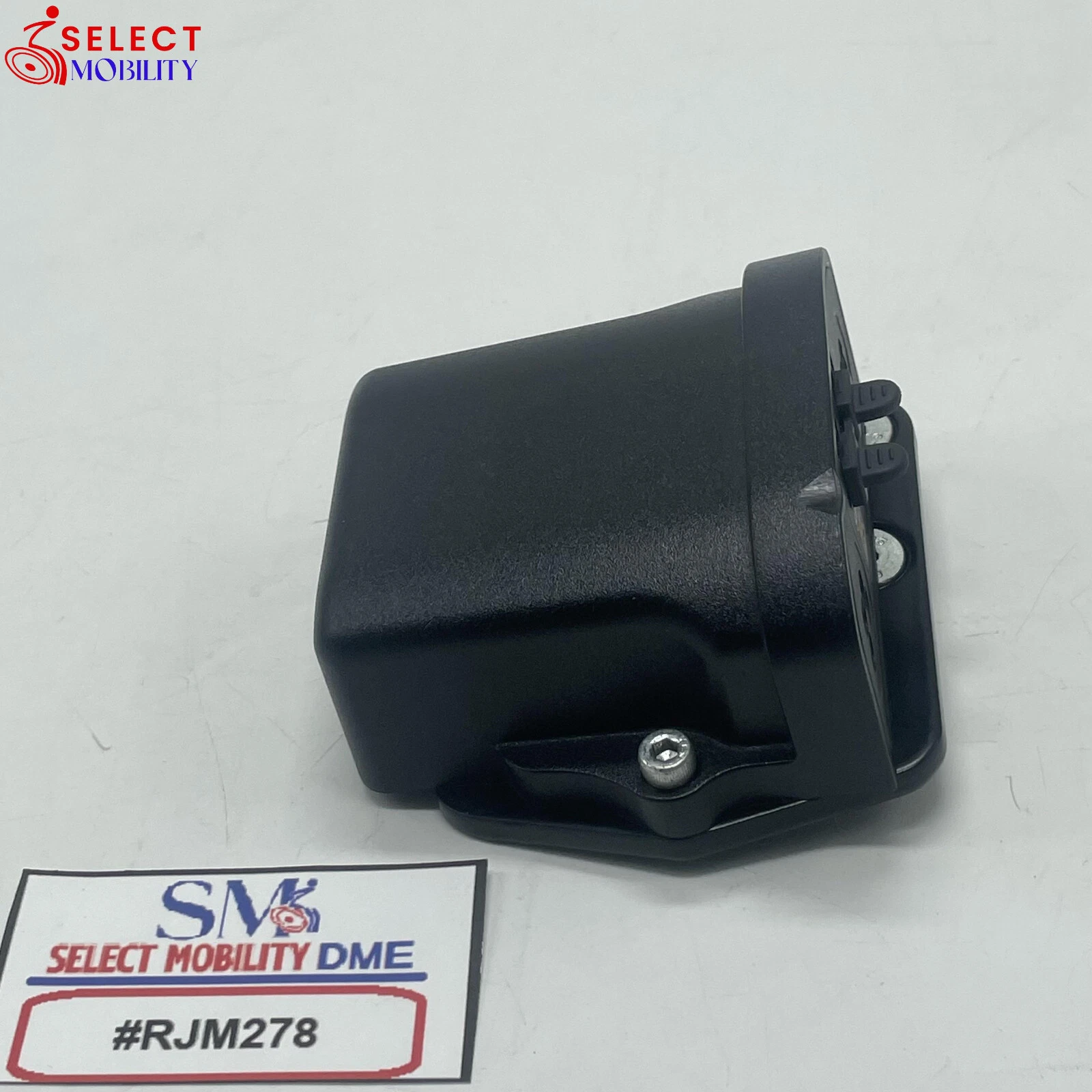

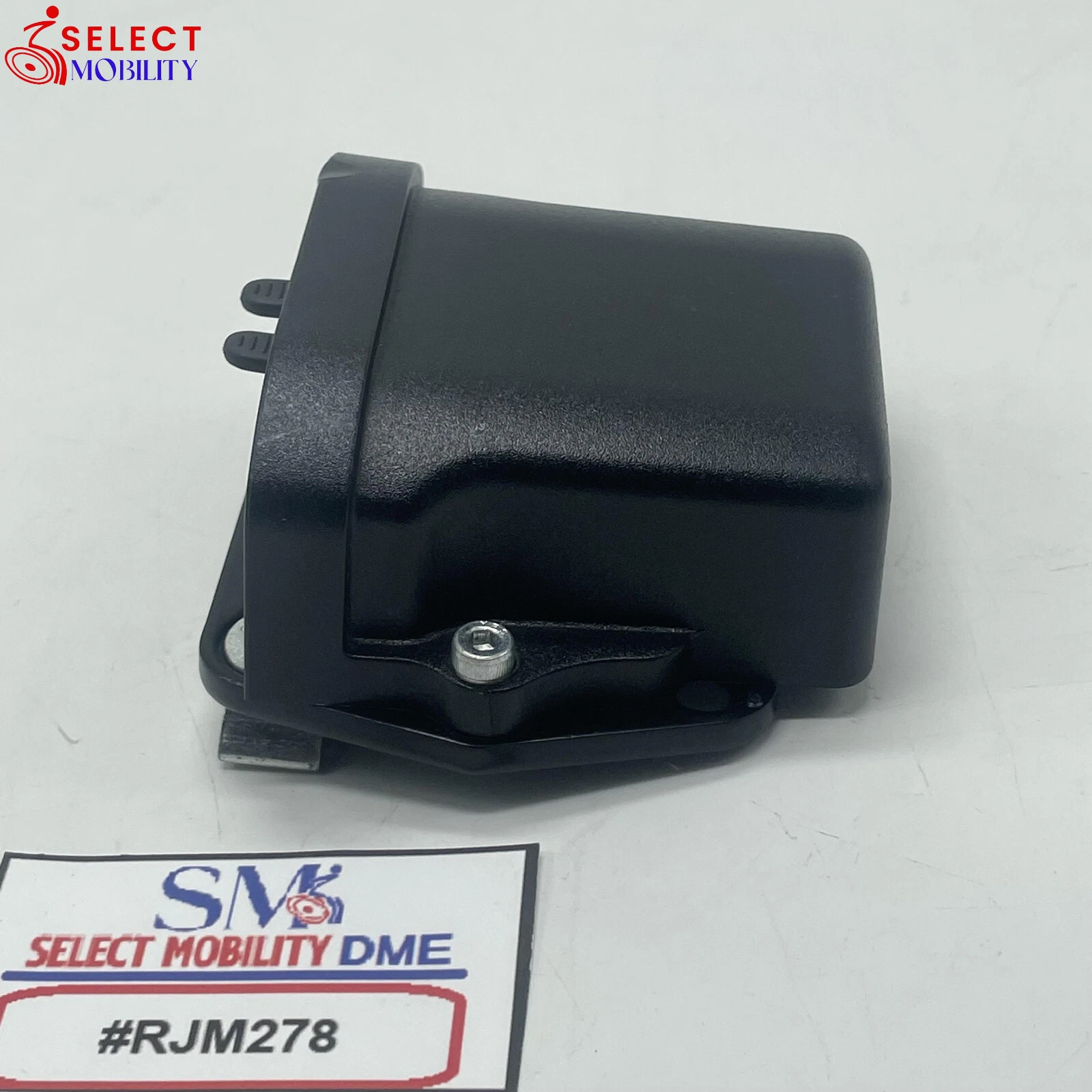

• Mounting bracket and hardware included for clean installation

Part Numbers

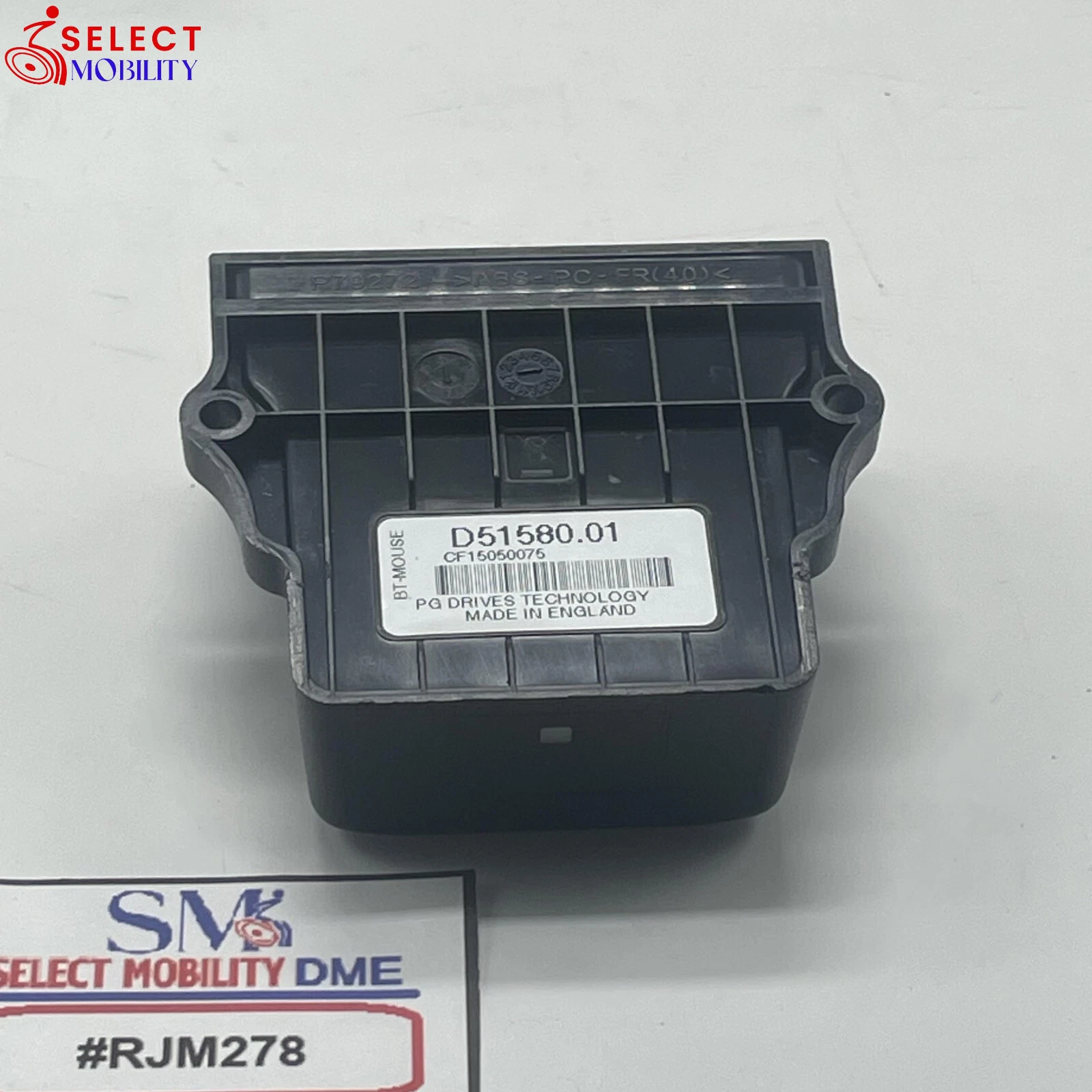

• PG Drives Part No: D51580.01
• Permobil Part No (New/Old): 614712 / 1831423
• Mount Kit Part No (New/Old): 325187 / 1831978

Compatibility

• Works with any R-net enabled Permobil power chair
• Requires R-net input device (joystick, Omni, etc.)
• iOS 7 and newer devices fully supported
• May require power module update on chairs manufactured before Nov 2014

Setup & Usage

• Simple Bluetooth® pairing process with iDevice
• Default operation: Switch Control — instantly usable with no programmer
• Advanced programming available via R-net PC Programmer
• Joystick nudges and switches can be customized to control Home, Select, Next, etc.

Quality Assurance Checklist

• Bluetooth® pairing tested and verified

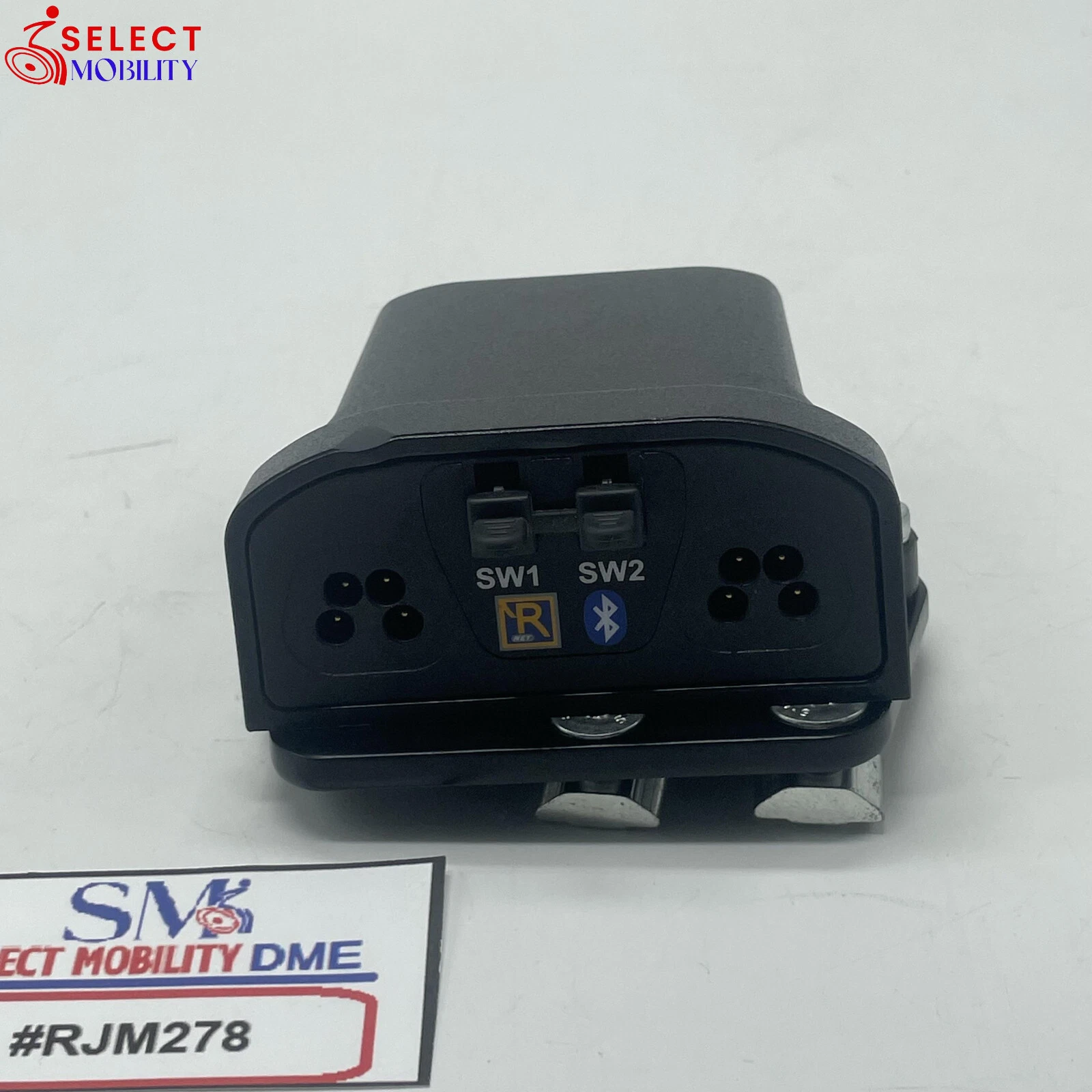

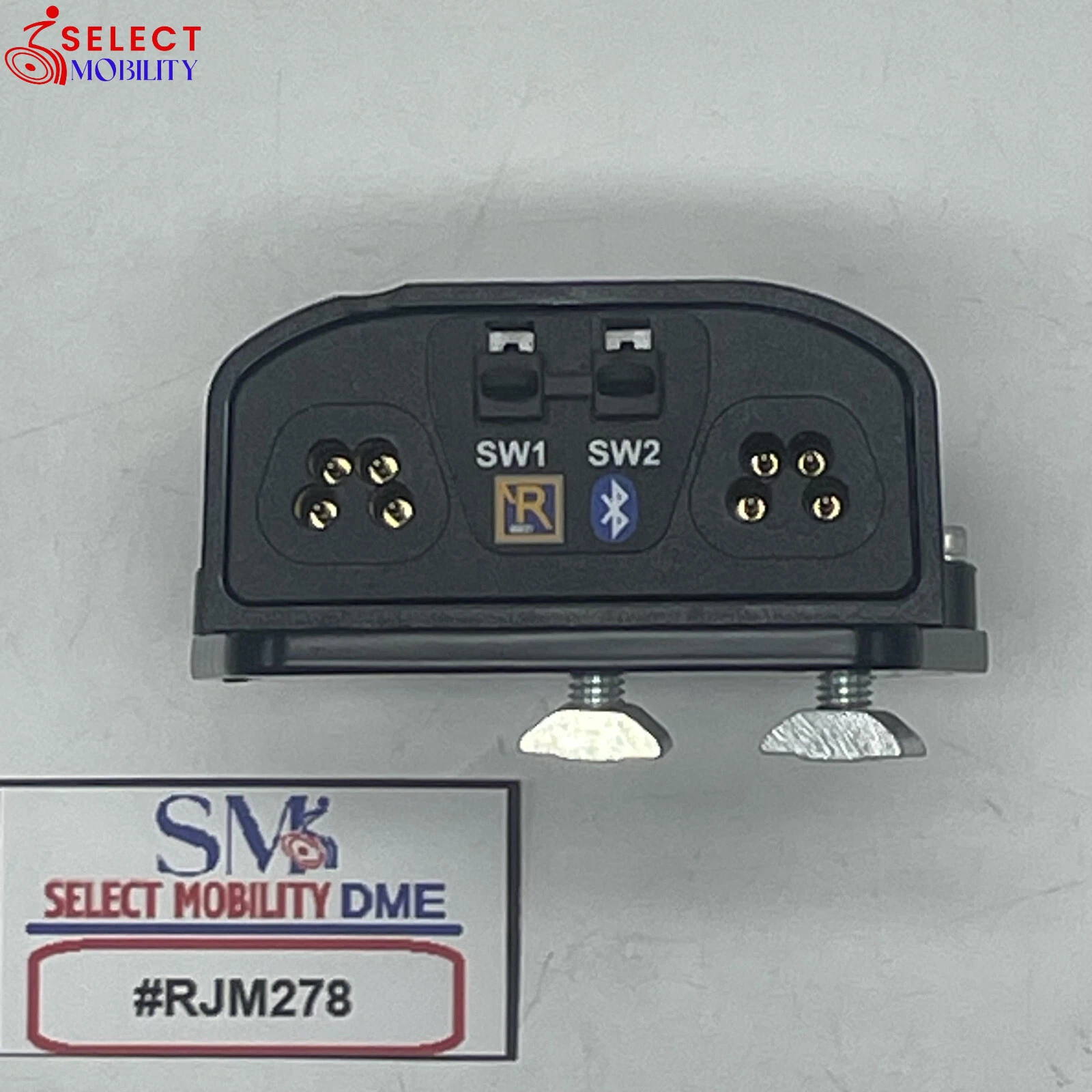

• SW1 and SW2 ports inspected
• R-net compatibility confirmed
• Housing and mount inspected for wear and integrity
• Module functionality tested on iOS device
