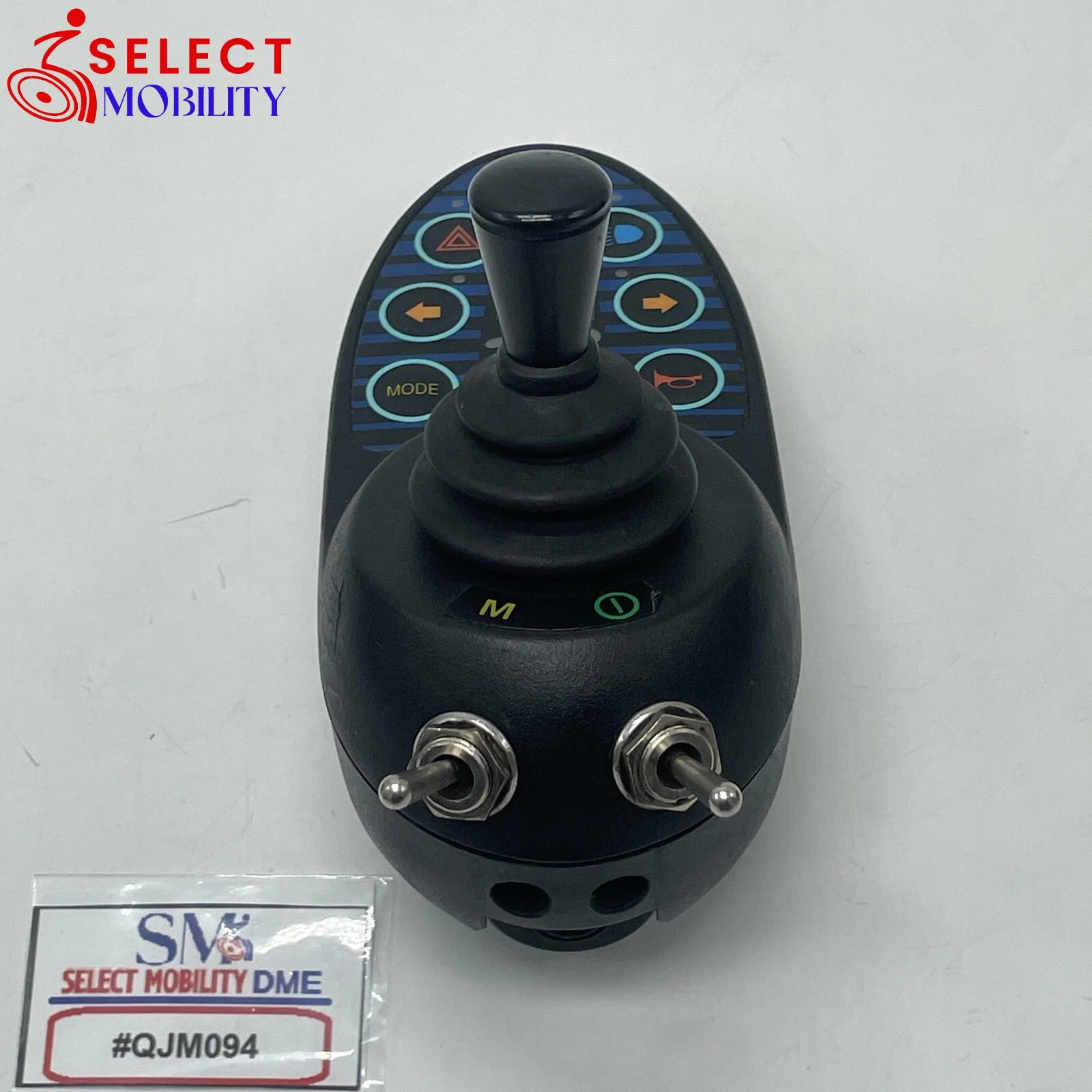

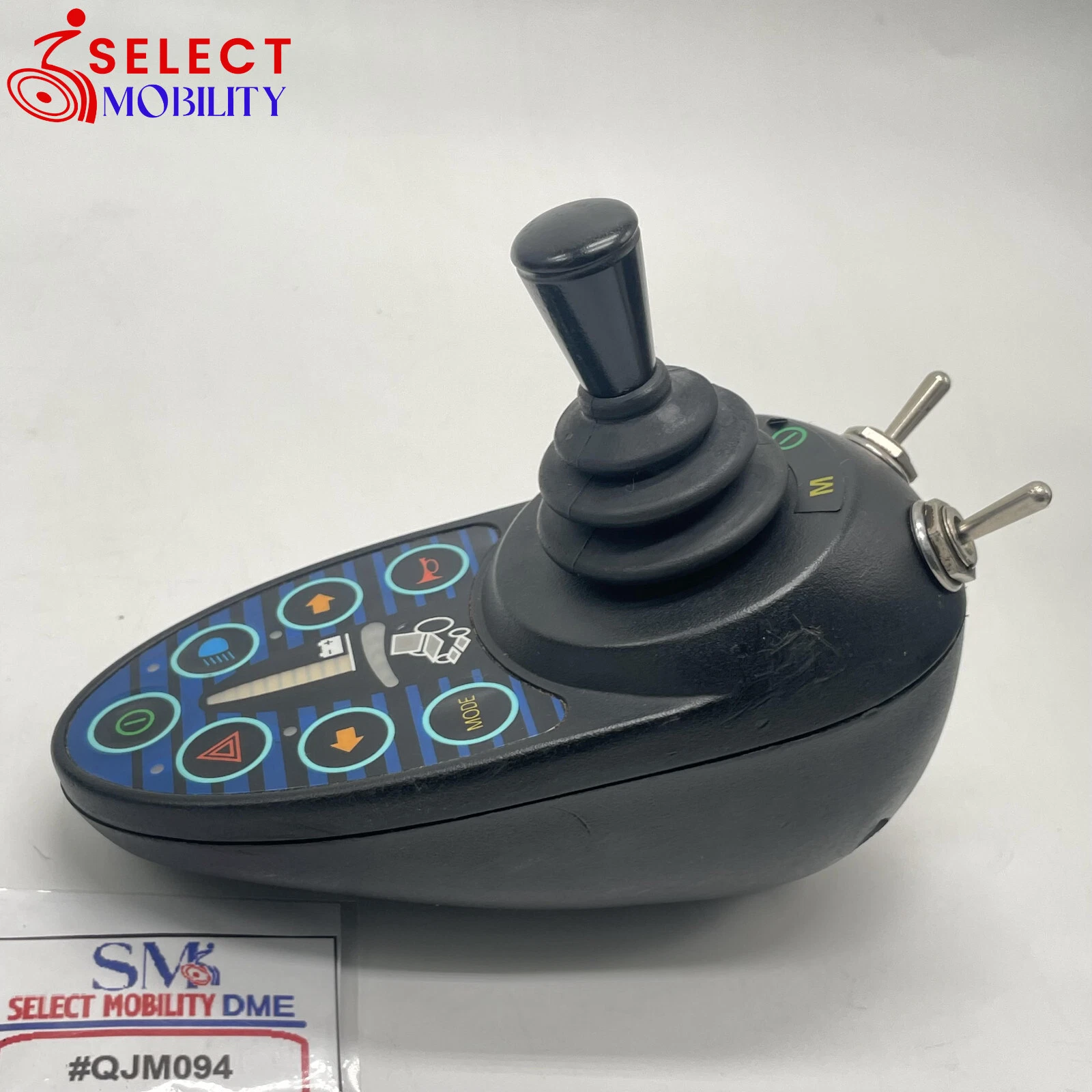

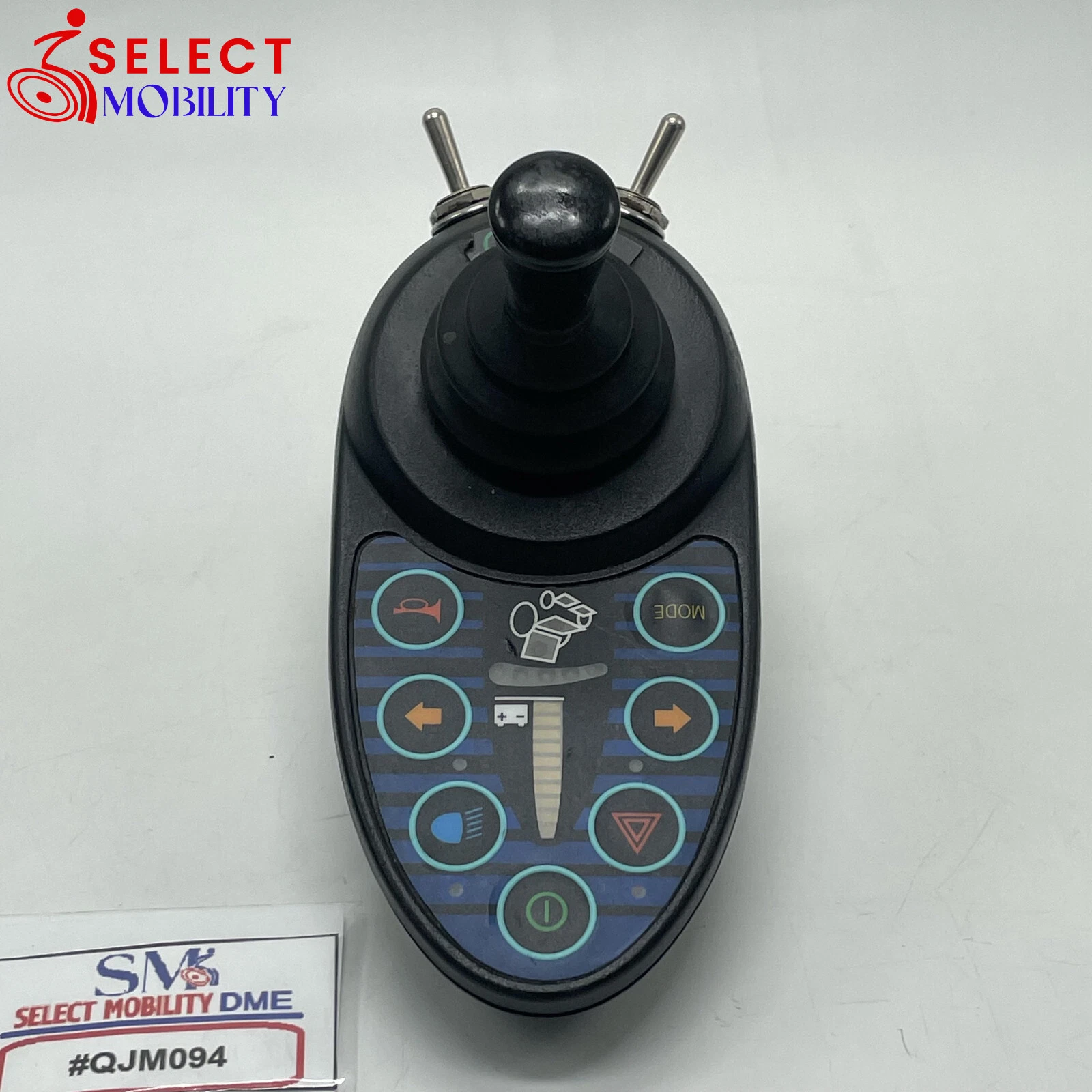

PG Drives Pilot+ 7-Key Joystick D50002/02 — Permobil & Quickie Compatible
$180.00
Refurbished PG Drives Pilot+ 7-key joystick. Compatible with many Permobil and Quickie power chairs.
PG Drives 7-Key Pilot Plus Joystick (D50002/02) | Permobil & Quickie Compatible | #QJM094
Condition: Fully tested and ready for use. Cleaned, inspected, and confirmed operational.
This PG Drives Pilot Plus Remote (7-Key) is a modular, programmable wheelchair joystick system engineered for full control of drive, speed, actuators, and auxiliary functions. Suitable for most Pride Mobility chairs, it’s also compatible with select Permobil, Pride Mobility and Quickie (Sunrise Medical) systems when integrated with compatible modules.
Key Features
- Joystick Control: Full-range drive direction and proportional speed control

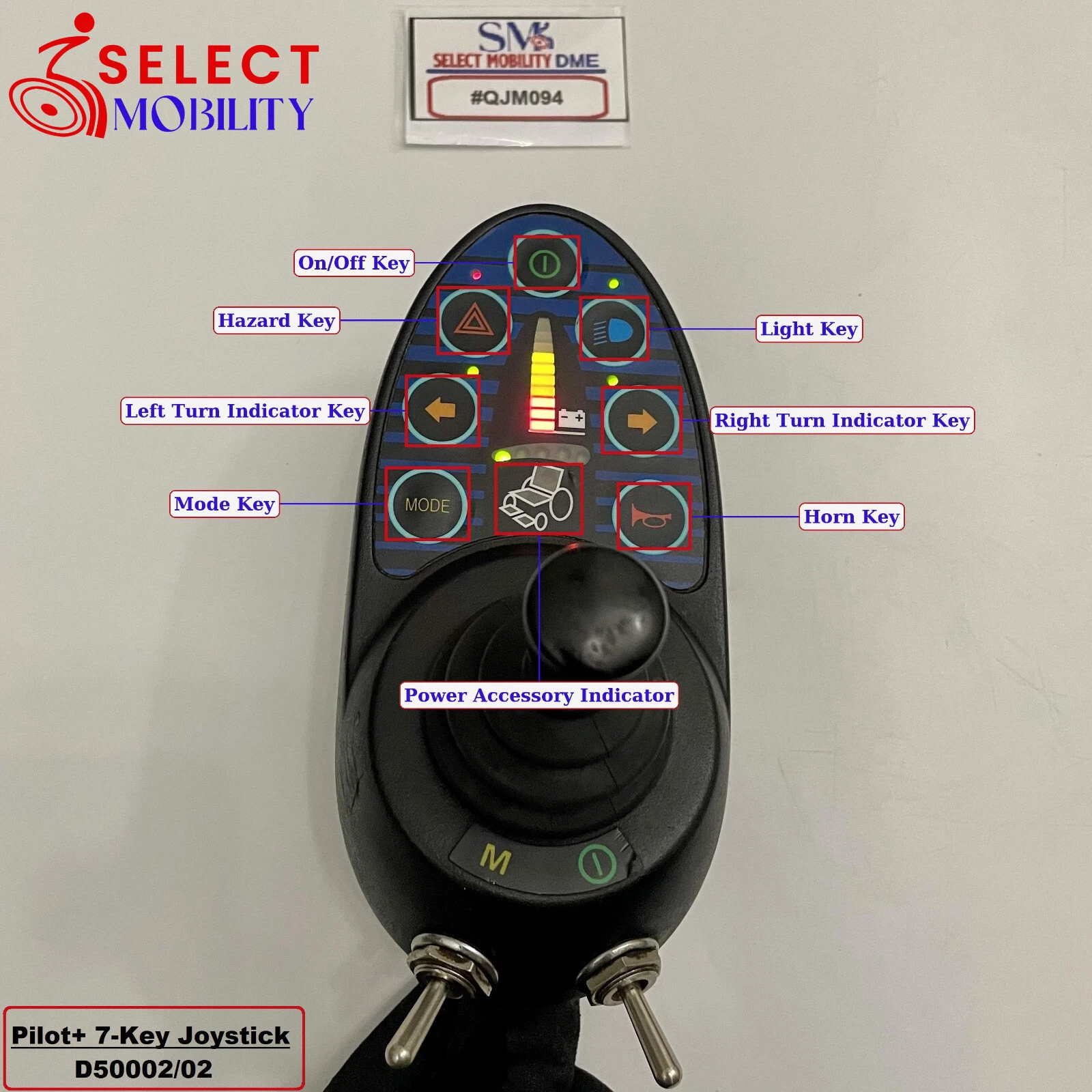

- 7-Key Control Pad: Access power, horn, profiles, lights, and actuators easily
- Speed/Profile LEDs: 5-color LED bar shows selected speed or drive profile
- Actuator Control: Supports recline, tilt, elevating leg rests, and power seat lifts
- Battery Condition Display: 10-segment color bar shows charge level and faults
- Programmable Modes: Up to 5 drive profiles or speed settings via OEM software
- Sleep Mode: Auto-suspend to preserve battery, programmable for delay or disable
- Thermal Rollback: Prevents damage by reducing performance during overheating
- 3-Pin NC3MX Charging Port: Use off-board charger (8A max) or for software programming
Technical Specifications
| SPECIFICATIONS | |
|---|---|
| Model | Pilot Plus Remote (7-Key) | D50002/02 |
| Voltage Range | 16V – 35V DC |
| Speed Profiles | Up to 5 customizable settings |
| Actuator Indicators | Recline, tilt, power leg rest, seat elevate (LEDs) |
| Battery Meter | 10-bar LED charge and fault indicator |
| Mount Type | Bracket-mounted with standard harness connector |
| Charging Port | 3-Pin Off-Board (Neutrik NC3MX compatible) |
| Compatibility | Compatible with Pride, Permobil, Quickie systems using matching power modules |
Quality Assurance Checklist
- ✔️ Joystick centered and tested across all motion vectors
- ✔️ All 7 keys verified for function and LED indicator output
- ✔️ Actuator functions tested where applicable
- ✔️ Battery meter display inspected for proper segment lighting
- ✔️ Charger port cleaned and function-checked using NC3MX plug
- ✔️ Unit sanitized and casing inspected for wear or damage
- ✔️ Compatible with most GC, Q-Logic, or Pilot Plus systems
Shipping & Support
Ships Same Day – All orders confirmed before 12 PM Central ship out same business day via expedited service.
Have questions about compatibility or setup? Message us anytime — we’re here to help ensure a smooth install.
| Logic System | Pilot+ |
|---|---|
| Condition | Refurbished |
| Brand | PG Drives |
| Compatible Brand | Permobil, Quickie, Pride Mobility |
| Type | Joystick |
| Permobil Part No. | 309391 |

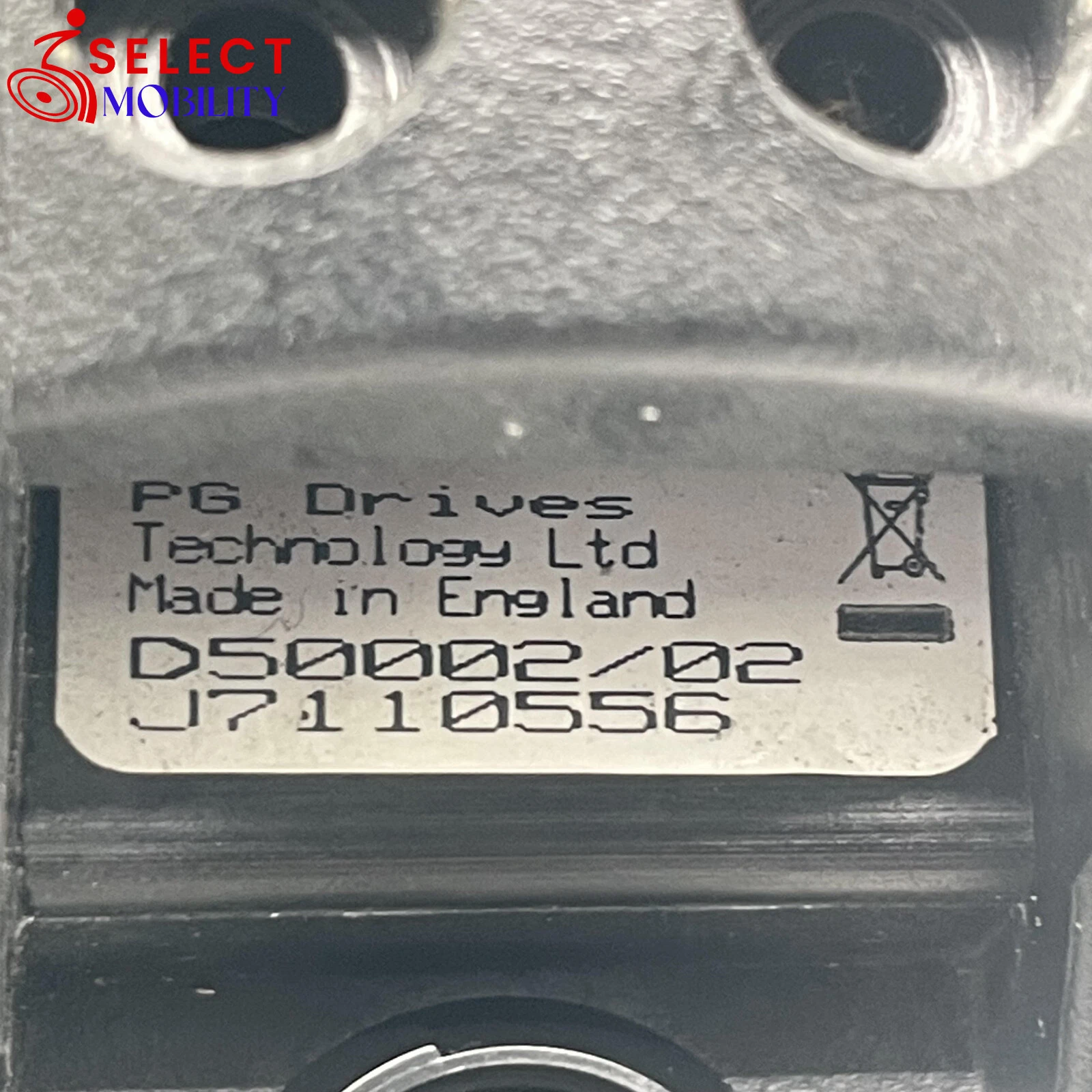

| MPN | D50002/02 |
