Permobil R-Net PJSM D51635.02 w/ Bodypoint U-Shaped Handle | #JM267
Condition:
Certified Pre-Owned (CPO). Fully bench-tested for electrical integrity,
input response accuracy, and proper communication with Permobil R-Net Power Platform electronics
(F & M-Series Corpus, M300 Corpus HD). Light cosmetic wear may be present. Includes only items shown in photos.
(MPN D51635.02)
is a primary R-Net LCD joystick drive and seating control module used on
Permobil R-Net Corpus power wheelchairs.
It provides reliable operation for drive, mode switching, seat functions, and system access, and
adds integrated Bluetooth and infrared environmental control.
Key Features:
- OEM Part Number: D51635.02
- Color LCD R-Net display with modern graphics, speedometer, battery indicator, clock, and profile name.
- Integrated Bluetooth® mode for up to four paired devices (PC, Android, and iDevices) with mouse pointer control, clicks, and scrolling.
- Built-in infrared (IR) transmitter with learnable and sequenced codes for TV, audio, and environmental controls.
- Five-button / two-paddle layout with programmable hazard lights, turn signals, lights, and power seating functions.
- Seat mode and M1–M3 memory positions available on compatible power seating systems.
- Dual 1/8″ jack sockets for external on/off and profile switches (e.g., buddy buttons).
- Front-mounted R-Net charger socket for wheelchair charging and lock key connection only, per Permobil guidance.
- Designed for use with Permobil F & M-Series Corpus models and M300 Corpus HD using R-Net Power Platform electronics.
Specifications
| Part Number (MPN) | D51635.02 |
|---|---|
| Alternate References | IPB refs: 615264-99, 1833059 |
| System / Platform | Permobil R-Net Power Platform (F & M-Series Corpus, M300 Corpus HD) |
| Controller / Part Type | |
| HCPCS | E2322 |
| Construction | |
| Operating Voltage | 24 V DC nominal (R-Net wheelchair control bus) |
Functional Behavior
- Power / mode / profile paddle turns the system on or off and scrolls through programmed drive profiles and modes.
- Maximum speed paddle increases or decreases wheelchair maximum speed, with the current setting shown on the LCD.
- Four programmable function buttons control hazard lights, front/rear lights, left/right turn signals, and power seating actuators (seat lift, tilt, backrest, leg rests) depending on chair configuration.
- Seat mode allows selection and operation of seat functions using the joystick, including M1–M3 memorized seat positions on compatible seating systems.
- Lock / unlock sequence uses the paddle and joystick deflections to prevent unauthorized use of the wheelchair.
- Display shows speedometer, battery state-of-charge, max speed indicator, profile text, clock, diagnostic icons (temperature, speed limit, restart, emergency stop) and distance/odometer data.
- Settings menu lets the user adjust time and distance displays, backlight level and auto-dimming, Bluetooth configuration, infrared setup, sleep timers, sounder/horn volume, and diagnostic screens.
- Bluetooth mode provides mouse pointer control, left/right click, scroll, and hazard/lights functions when paired with external devices.
- Infrared mode learns single or sequenced IR codes, enabling single-button control of multiple functions (e.g., TV on/off, channel macros).
- Compatible with ConnectMe telematics / flight mode where installed, including an airplane mode that disables radio transmissions in restricted environments.
Compatibility
- Permobil F-Series Corpus R-Net power wheelchairs (e.g., F3 Corpus, F5 Corpus, VS/MPO builds with Power Platform electronics).
- Permobil M-Series Corpus R-Net power wheelchairs (e.g., M1 Corpus, M3 Corpus, M5 Corpus, M Corpus VS) using PJSM joystick modules.
- Permobil M300 Corpus HD and related R-Net M300 configurations, including pediatric PS Jr. builds originally configured with PJSM.
- Commonly used as a replacement for damaged or failed PJSM joysticks on R-Net Permobil chairs configured with Bluetooth and/or IR capability.
- Any Permobil chair originally configured with D51635.02 or listed alias.
Quality Assurance Checklist
- ✔️ Bluetooth pairing and multi-device switching tested
- ✔️ On-screen display brightness sensor verified
- ✔️ All soft key functions inspected and reassignable
- ✔️ IR transmitter tested with remote-capable devices
- ✔️ Joystick movement and paddle buttons calibrated
- ✔️ Connectors inspected and cleaned for reliable operation
- ✔️ Charger socket tested and secure
- ✔️ Plug-and-play readiness
Shipping & Support
✔ FREE EXPEDITED SHIPPING on all orders before 12 PM CST.
✔ TECH SUPPORT: Send a clear photo of your joystick label and chair model (and any seating modules) and we will confirm R-Net compatibility before you buy.
Bundle Clarification

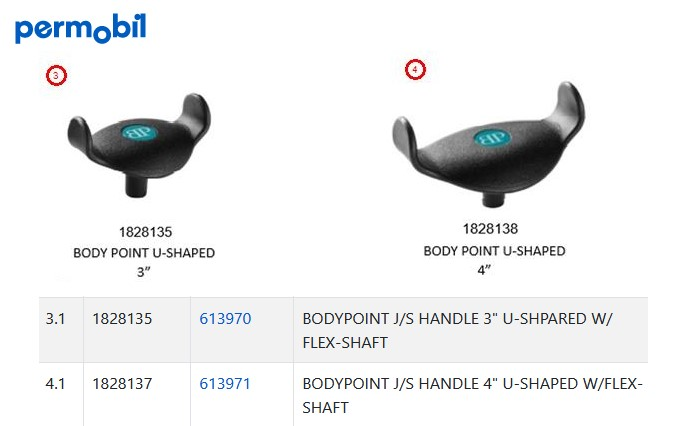

This listing is structured as a joystick-plus-accessory bundle: PG Drives D51635.02 joystick module with a Bodypoint U-shaped handle.
The joystick module identity remains D51635.02; the Bodypoint handle is treated as a separate included accessory component.
