2020 Permobil F3 Corpus — Power Tilt, Recline, Elevate, Legrests (4 Miles)
$5,499.00
Certified Pre-Owned Permobil F3 Corpus (Model 2) with 12″ seat lift, 50° tilt, 180° recline, and elevating legrests. R-Net color joystick w/ Bluetooth & IR. Fully QA-tested; freight & worldwide shipping.

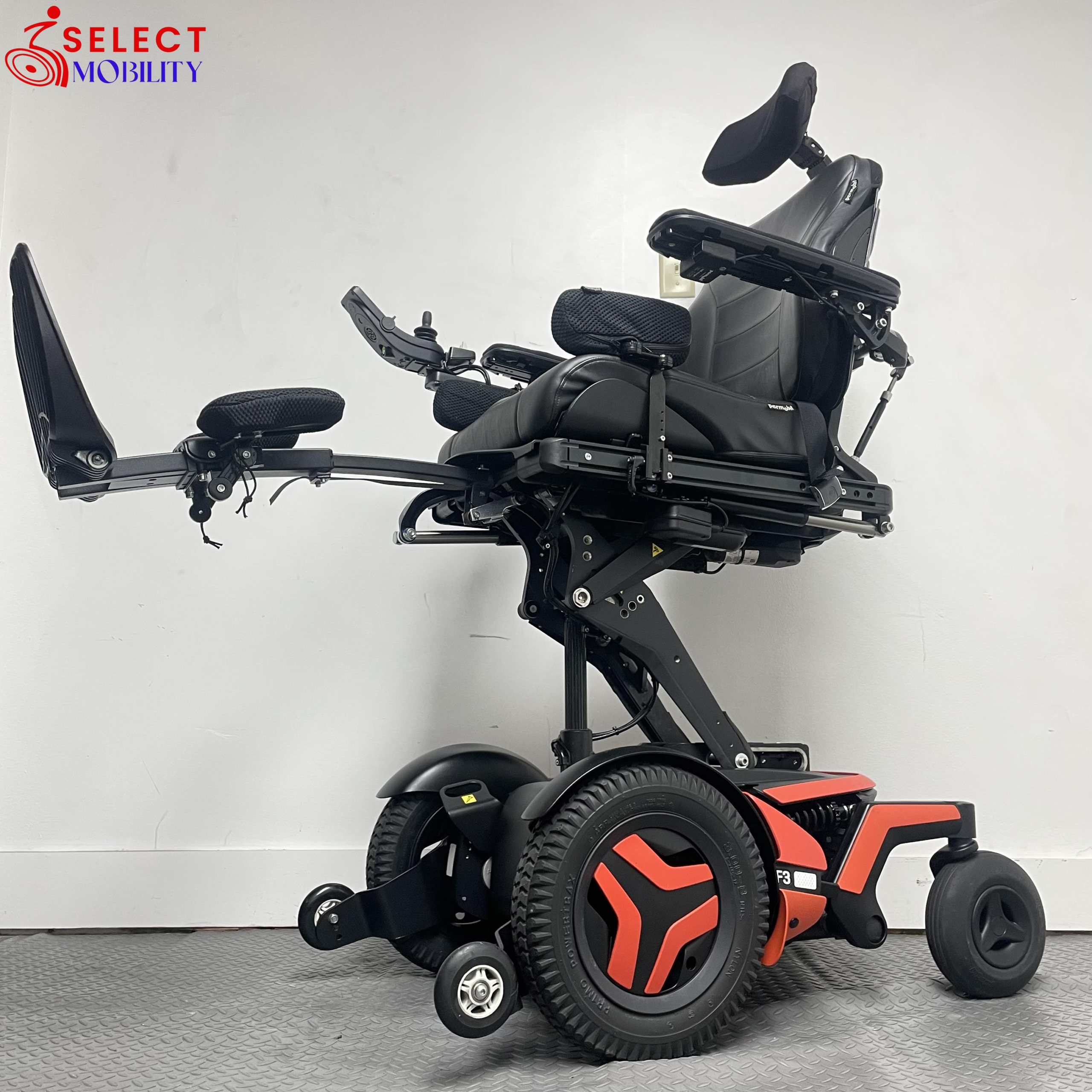

Permobil F3 Corpus power wheelchair in Chili Red (Model 2), like-new with only 4 miles—fully tested and ready, featuring 12″ seat lift, 50° tilt, 180° recline, and power elevating legrests.
Permobil F3 Corpus Model 2 Power Wheelchair – Like New | 12″ Seat Lift, 50° Tilt, 180° Recline, Power Legrests | F3 MPO
Color: Chili Red Color Kit
This Permobil F3 Corpus is in pristine condition with only 4 miles of prior use. Featuring a 17″W × 20″D seat (adjustable upon request), it’s equipped with full power seating, including ActiveHeight® seat elevation, 50° posterior tilt, 180° power recline, and elevating legrests. The F3 is a premium front-wheel drive rehab chair engineered for stability, comfort, and precise positioning. With an original MSRP of over $45,000, this configuration includes the R-Net color joystick with Bluetooth® & IR, as well as an ICS seat function keypad with toggle switches for quick one-touch adjustments and power seat function management.
Condition: Like New
Out-of-box experience — fully tested, detailed, and ready for immediate use. New batteries available upon request. No error codes; smooth, quiet actuators; electronics, USB charger, and accessories verified.
Key Features
- Drive Base: F3 Corpus (Model 2) chassis with front-wheel drive stability and shock-absorbing suspension

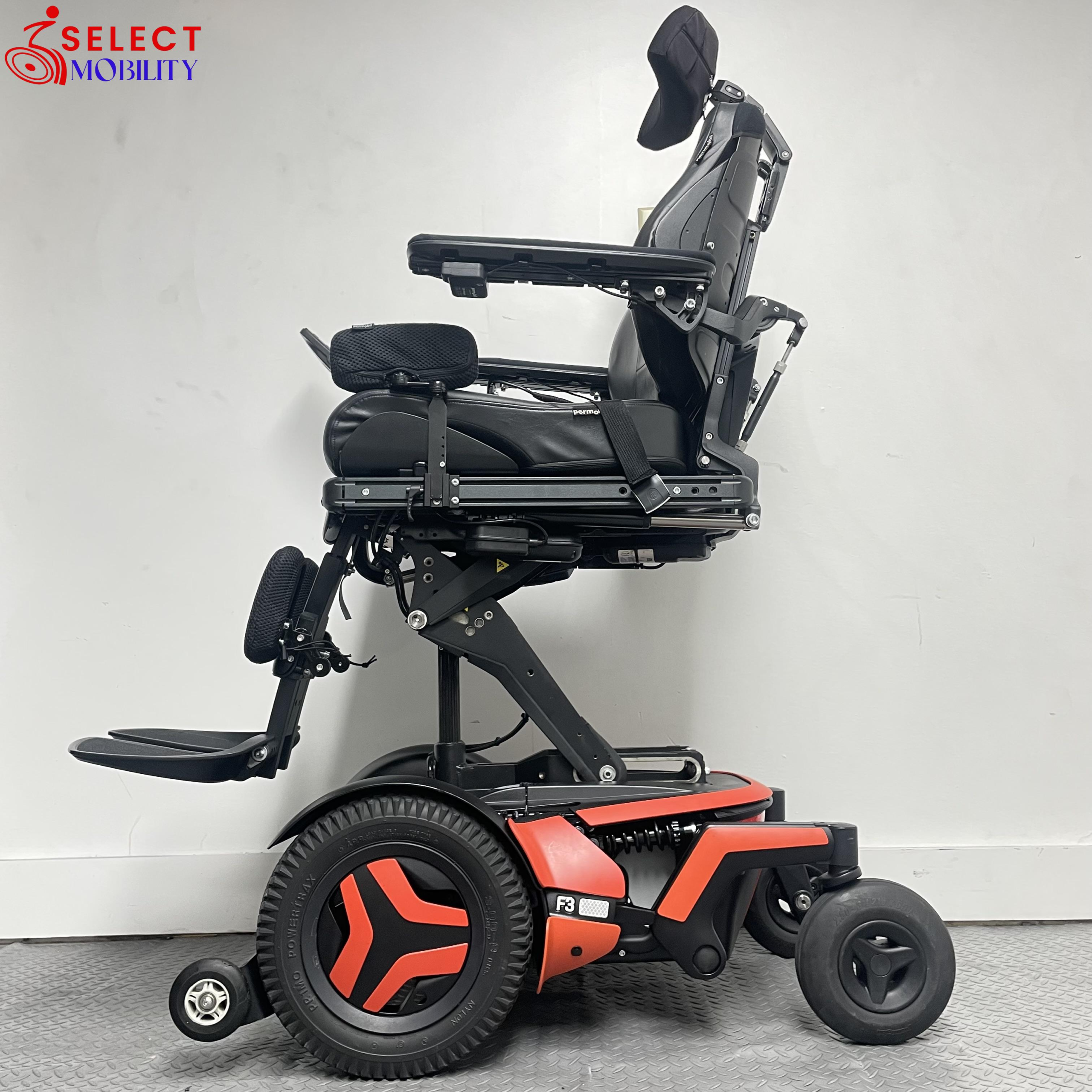

- Power Seating: 12″ ActiveHeight® (seat lift), 50° power tilt, 180° power recline, 90°–180° power elevating legrests
- Electronics: R-Net 120A with Permobil PJSM Color Joystick (Bluetooth pairing up to 4 devices, IR control, programmable buttons & switch jack)
- Seat Control: ICS Switchbox with toggle switches for intuitive one-touch seat function management; dual-function switch positions with illuminated icons
- Cushion & Backrest: Corpus Ergo Cushion Set (Leatherette), lateral wedges, and lumbar pads (18″ W × adjustable 23″–28″ H)
- Supports & Comfort: 4″ × 16″ Corpus arms w/ Permobil gel pads (pair), Permobil 10″ headrest w/ link hardware, Bodypoint® positioning belt, calf support kit (mesh, adjustable hardware)
- Batteries: Group 24 Gel, freshly installed. Health and capacity verified
- Wheels & Tires: 14″ × 3″ solid drive tires (3.00 × 8) and 210 × 65 mm solid casters; flat-free
What You’ll Love
- Stepless, quiet actuators—stop anywhere and hold position
- Low, compact base with tight turning for indoor maneuvering
- Programmable joystick with phone/computer control via Bluetooth
- Suspension on drive unit and link arms for a smoother ride
- Service-friendly design; robust Group 34/24 battery options
Specifications
| General | |
|---|---|
| Model | Permobil F3 Corpus (Model 2, F3 MPO) |
| Wheelchair Class | Group 3 / Rehab, Front-Wheel Drive |
| Dimensions & Weight | |
| Overall Length | 44 in (1120 mm) |
| Overall Width | 25.5–31 in (650–790 mm) |
| Overall Height | 38–46 in (960–1170 mm) |
| Stowage Length | 36 in (920 mm) |
| Stowage Height | 33.5 in (850 mm) |
| Weight (incl. batteries) | ≈379 lb (172 kg) |
| Heaviest Part | Backrest ≈16.5 lb (7.5 kg) |
| Seating Geometry | |
| Seat Plane Angle | −3° to 50° |
| Effective Seat Depth | 14.5–22 in by 1 in (370–570 mm by 25 mm) |
| Effective Seat Width | 17–23 in by 2 in (420–570 mm by 50 mm) |
| Seat-to-Floor Height (incl. cushion) | 19–35 in (490–880 mm) with 12 in ActiveHeight® |

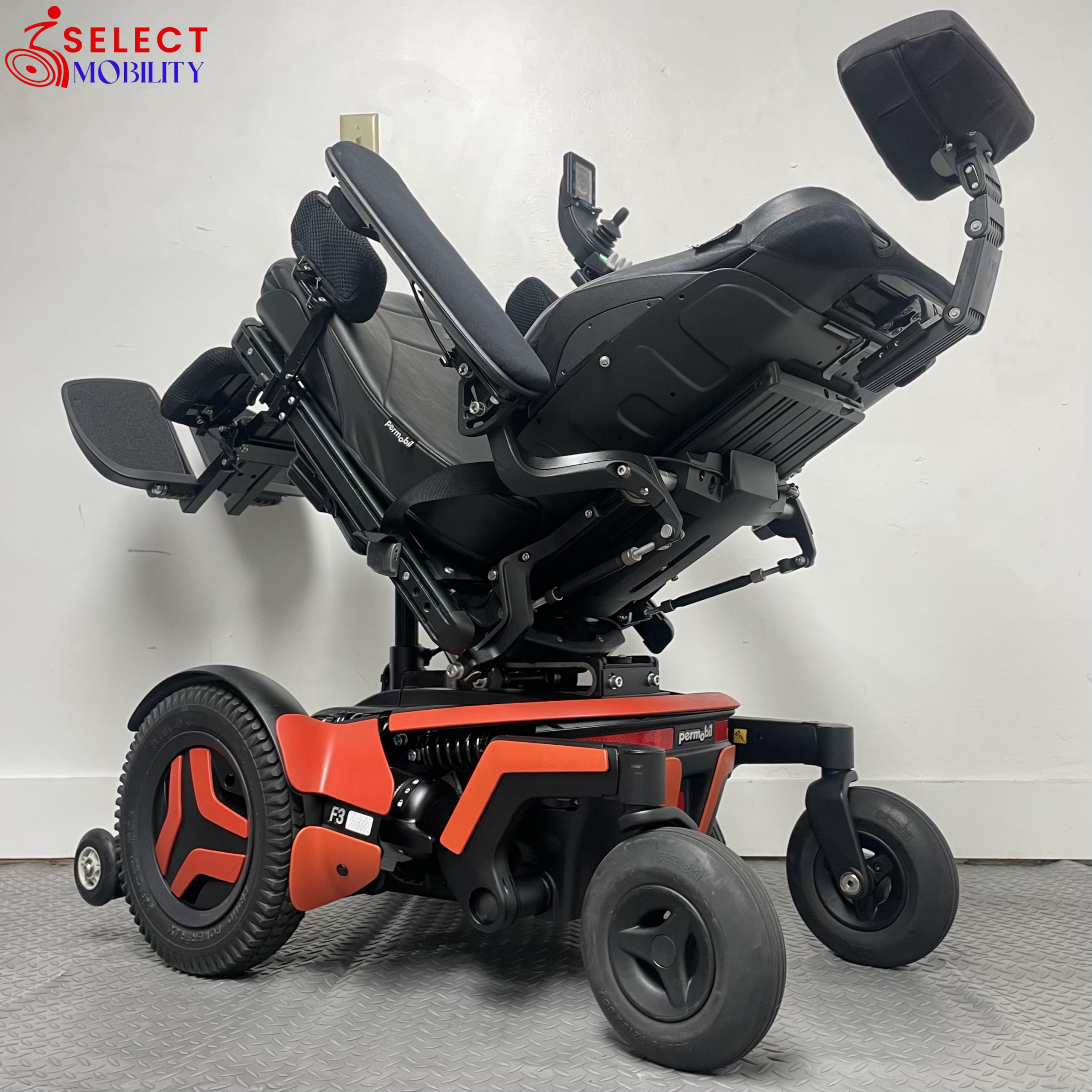

| Power Tilt | Up to 50° posterior |
| Power Recline | 85°–180° |
| Backrest Height | 19–24 in by 1 in (480–620 mm by 25 mm) |
| Footplate-to-Seat Distance | 15–23 in (380–590 mm) |
| Leg-to-Seat Surface Angle | ≈90°–185° |
| Armrest Height (to seat) | 7–10 in (180–260 mm) |
| Front Armpost to Backrest | 5–16 in (120–410 mm) |
| Performance | |
| Theoretical Driving Range | ≈18 miles (29 km) |
| Theoretical Maneuvering Range | ≈7.5 miles (12 km) |
| Maximum Speed | 6 mph (10 km/h) |
| Minimum Braking Distance (from max speed) | ≈6.6 ft (2.0 m) |
| Parking Brake — Max Slope | ≈19° forward / 19° backward |
| Static Stability (laboratory) | Forward 19° (most), Backward 19° (most), Sideways 19° (most) |
| Dynamic Stability (typical) | Forward on ramp 10°, Backward on ramp 10°, Sideways on ramp 10° |
| Obstacle Climb (max) | 3 in (75 mm) |
| Rated Climbable Slope | ≈6° |
| Turning & Clearances | |
| Minimum Turning Diameter | 62 in (1580 mm) |
| Required Corridor Width | 52 in (1320 mm) |
| Required Door Width (entering) | 31.5 in (800 mm) |
| Ground Clearance (under seat / with user) | ≈3.1 in (80–85 mm) |
| Wheels & Tires | |
| Drive Wheel Tires | Air or solid, 3.00–8 in |
| Caster Tires | Air or solid, 2.50–3 in (210×65 mm) |
| Recommended Tire Pressure | ≈35 psi (250 kPa) where applicable |
| Batteries | |
| Type / Nominal Voltage | Sealed lead acid, 2 × 12 V (Group 34; Group 24 compatible) |
| Capacity (C20) | ≈65 Ah |
| Cycle Life | ≈450 cycles |
| Electronics & Connectivity | |
| Drive Electronics | R-Net PM120 (color joystick, Bluetooth® & IR) |
| User Capacity | |
| Maximum User Weight | 330 lb (150 kg) |
Permobil F3 Corpus Model 2 DEMO
Video transcript
Walkthrough of a like-new Permobil F3 Corpus (Model 2) in Chili Red. The demo shows ActiveHeight® 12″ seat elevation, 50° posterior tilt, full 180° recline, and power elevating legrests controlled with the R-Net color joystick and the ICS keypad. Close-ups include illuminated seat function icons and smooth, stepless actuator motion. The video ends with a view of the compact front-wheel-drive base and tight indoor turning.
Included Accessories
- USB charger integrated at armrest
- Bodypoint® positioning belt
- Wide two-piece footplates (9”D × 7.5”W)
- Calf support kit (5″ W × 6.5″ H pads) with adjustable hardware
Quality Assurance Checklist
- ✅ Joystick, ICS keypad, and display fully functional
- ✅ Power lift, tilt, recline, legrests smooth through full range
- ✅ Suspension inspected—no leaks, abnormal noises, or play
- ✅ Frame integrity verified; no cracks or bends
- ✅ Tires solid with excellent tread; casters track true
- ✅ Controls, USB charger, and seat switches tested
- ✅ Wiring secured; no frays or exposed conductors
Shipping & Support
Domestic Freight: Ships crated and fully assembled within 3 business days. Curbside delivery with liftgate.
International: Air (≈7–12 business days) or ocean (≈30–45 days) available. Customs duties/taxes may apply. Message for a quote.
Post-Sale Help: We offer setup assistance, sizing changes, and accessory swaps. Tech support is available for pairing, profiles, and seating presets.
Notes on Design & Function
All power seat functions are driven by stepless electric actuators and can be stopped at any point for precise positioning. The joystick and ICS keypad provide redundant, easy controls; illuminated icons show the active function.
| Drive Config | Front – Wheel Drive |
|---|---|
| Condition | Certified Pre-Owned |
| MPN | F3, F3 MPO, 108993-99-0, F3 Corpus 2 |
| Batteries | Grp 24 (72Ah) Sealed Gel, x2, Installed |
| Backrest Cushion | Corpus Ergo Back – Leatherette (18″ W) + lateral wedges |
| Top Speed | 6 mph |
| Armpads | Corpus Gel Armpads |
| Seat Elevator | Power Adjustable Seat Height – 12″ Travel (ActiveHeight™) |
| Joystick Module | Permobil Color Joystick Module (PJSM) |
| Legrest | Power Legrest Elevation – 90°-180° |
| Accessory | Permobil UniTrack USB Charger |
| Maximum Load Capacity | 330 lb |
| Recline | 180° Power Recline |
| Seat Function Keypad | ICS Switchbox w/ Toggle Switches |
| Drive Tires | Flat Free Tire 3″W x 14″T Black |
| Joystick Mount | Right – Swing Away (Can be moved to left side upon request) |
| Color | Red |

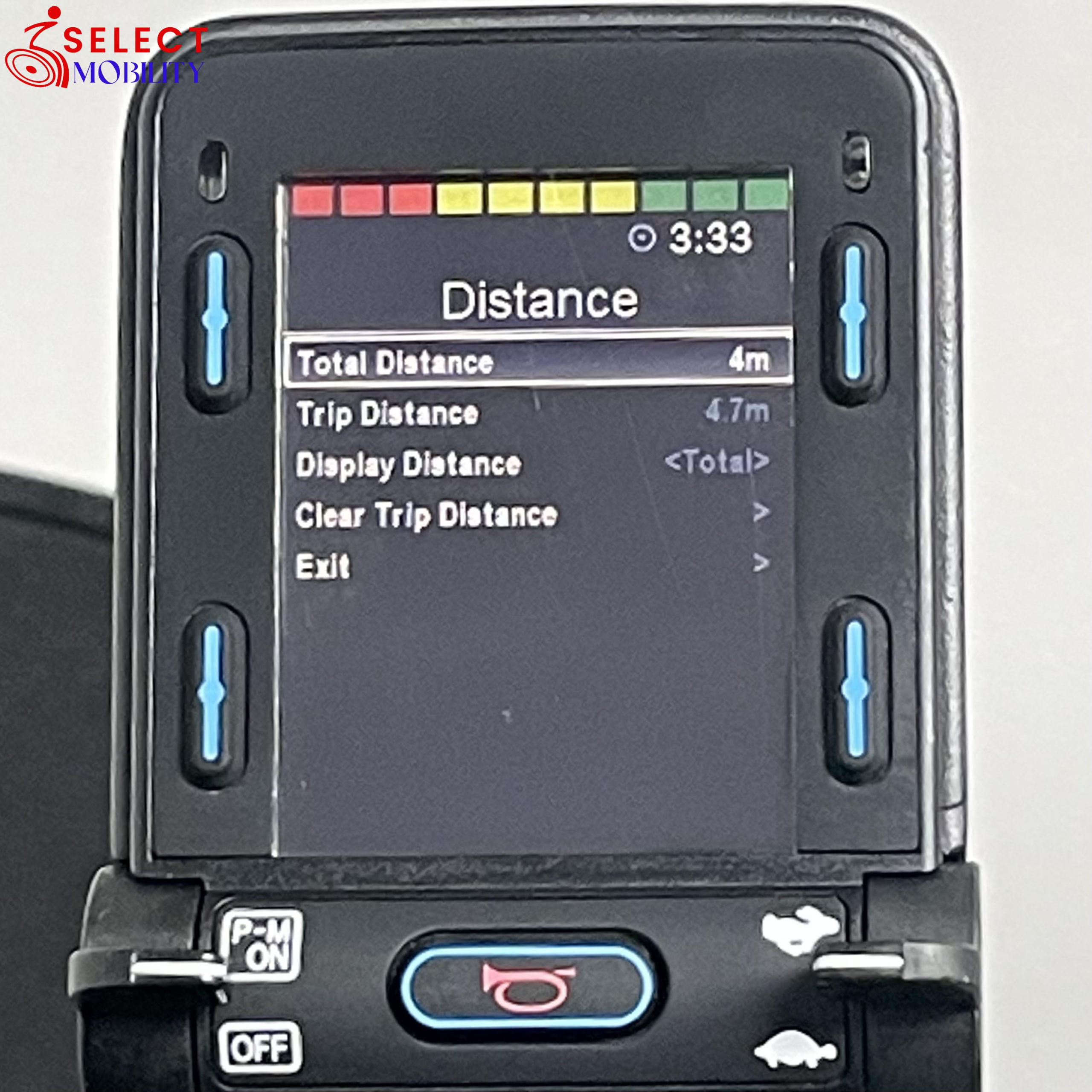

| Mileage | 4 Miles (ODO) |
| Seat Dimensions | 17″ W × 20″ D (adjustable upon request) |
| Base | F3 Base Corpus – F3 MPO |
| Brand | Permobil |
| Type | Power Wheelchair |
| Thigh Supports | Permobil Unitrack Support Pads (C) – 8″W x 3.5″T (Pair) |
| Model | Permobil F3 |
| Tilt | 50° Power Tilt (Posterior) |
| Seat Cushion | Corpus Ergo – Leatherette |
| Number of Wheels | 4 |
| Country/Region of Manufacture | Sweden |
| Manufacture Year | 2020 |
| Logic System |
