2022 Permobil M3 Corpus — Power Lift, Tilt, Recline, Legs (1 Mile)

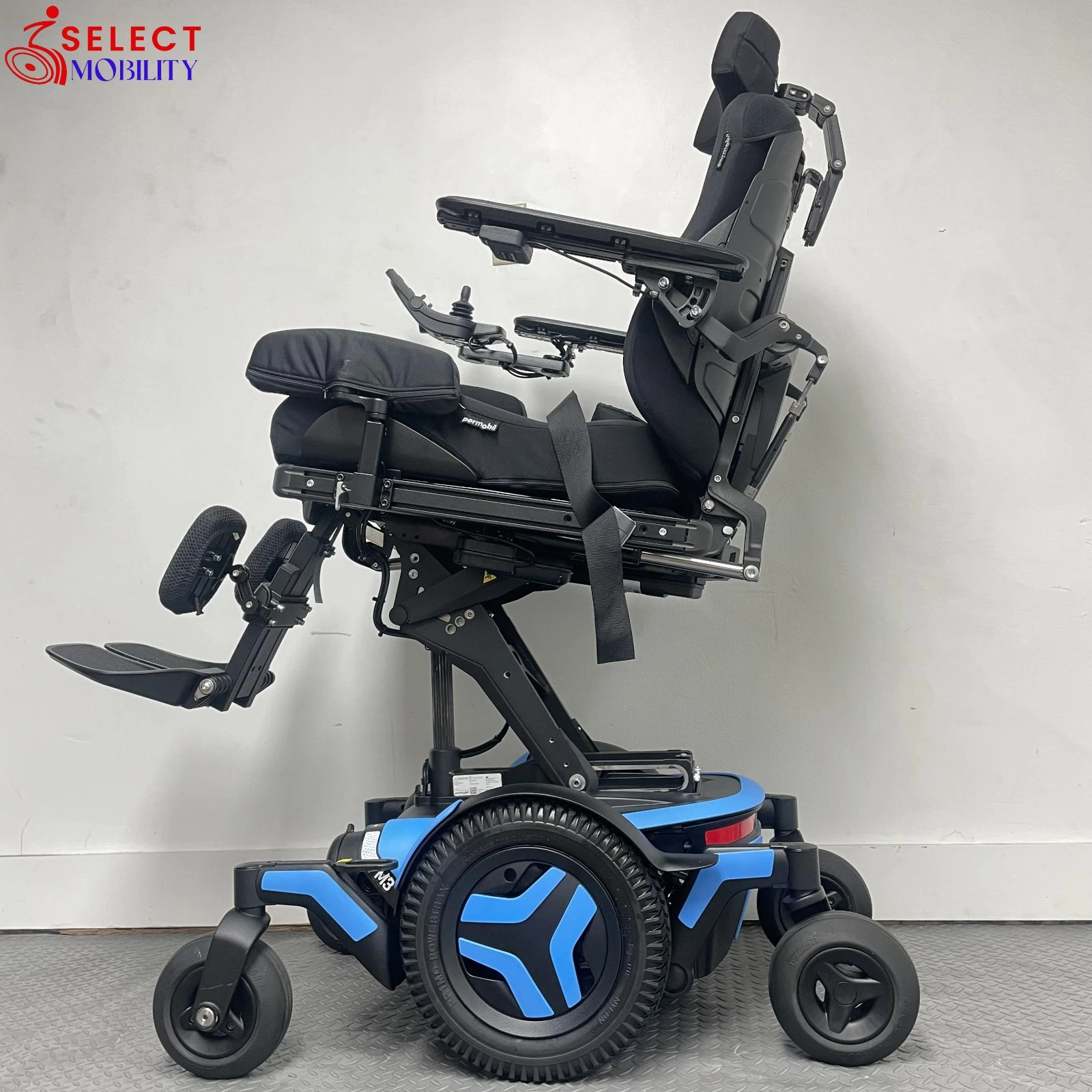

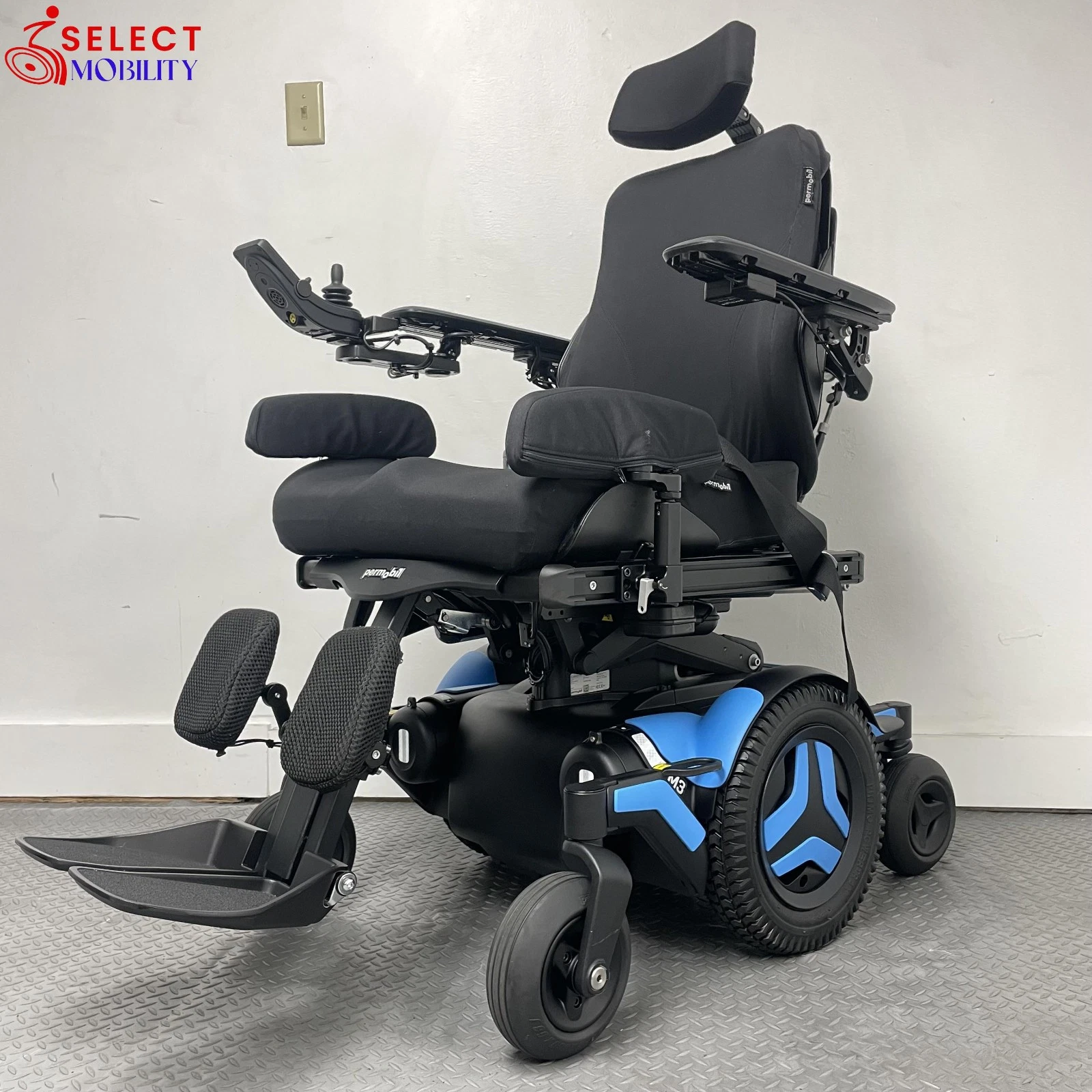

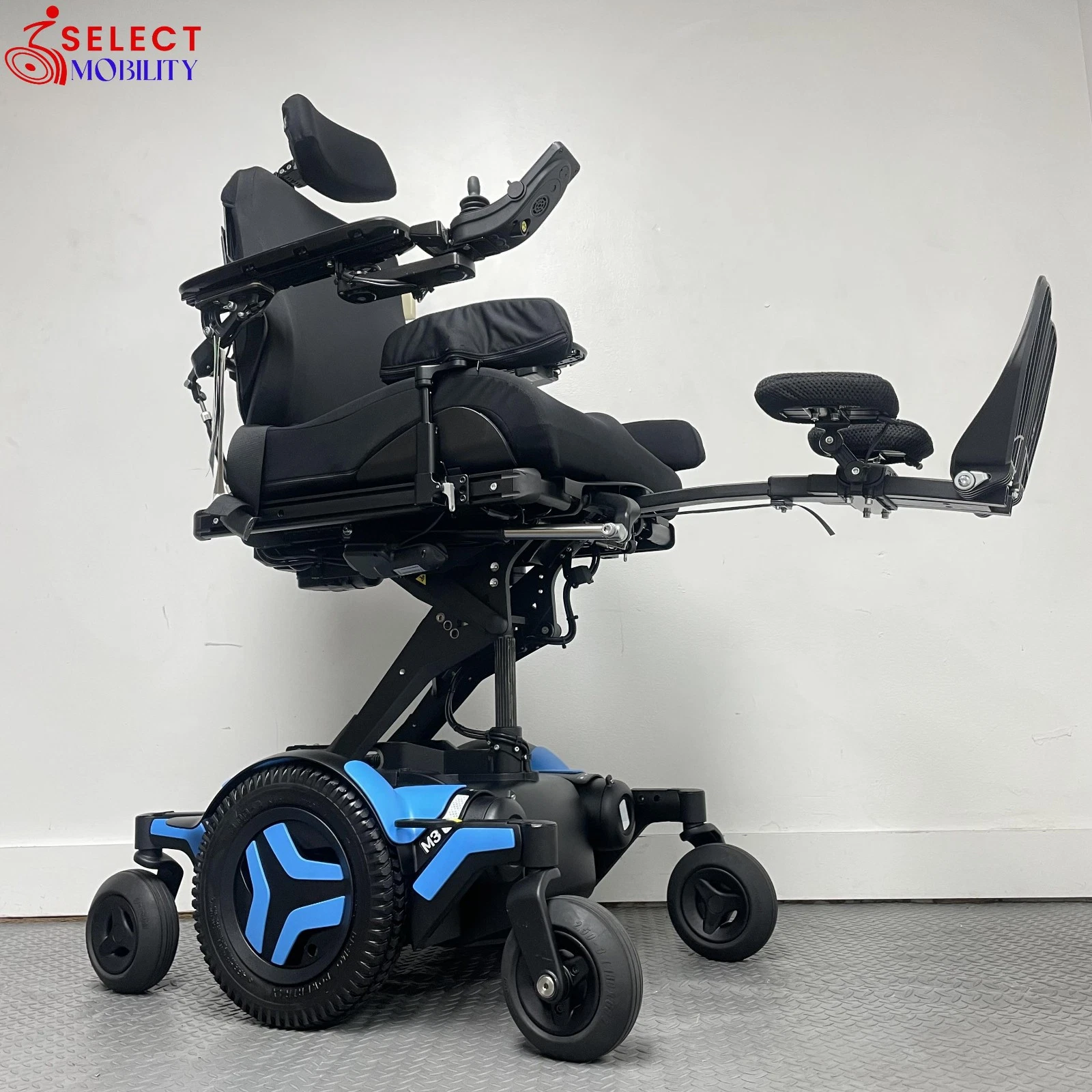

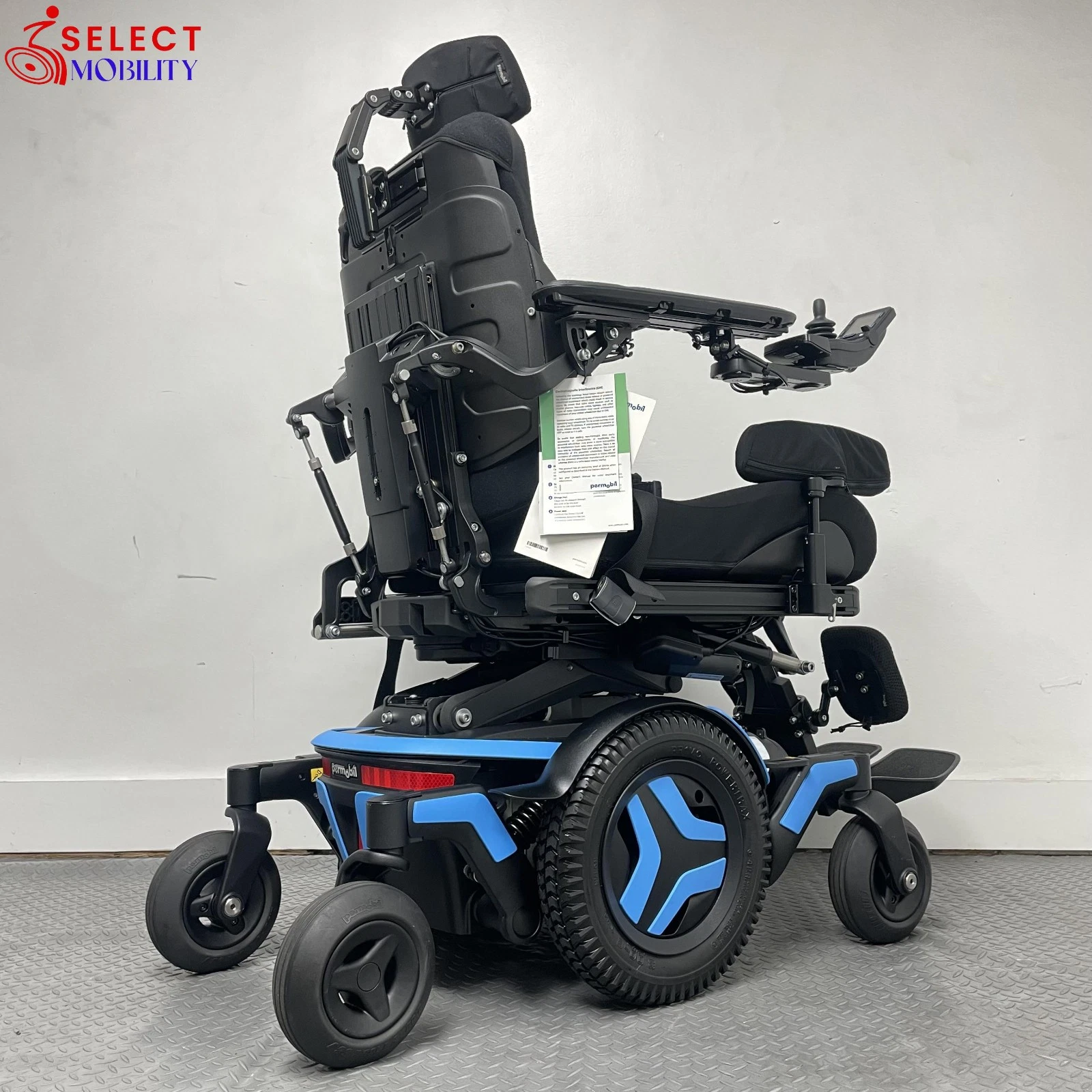

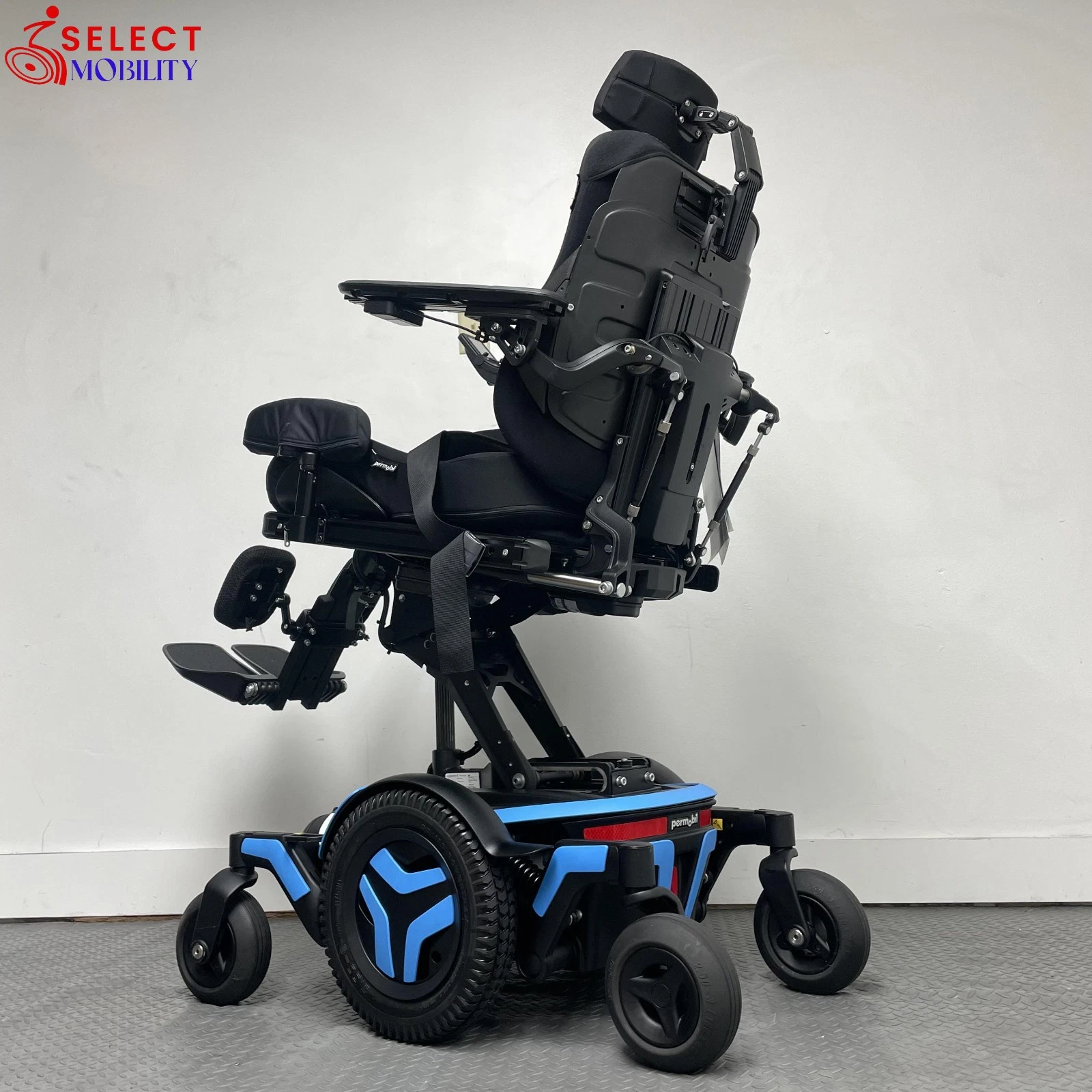

Refurbished 2022 Permobil M3 Corpus with lift, tilt, recline, and powered legs. Only 1 mile.
Permobil M3 Corpus Power Wheelchair – Tilt, Recline, Elevate, Legrest. 1 Mile (ODO) NEW |
MPOColor: Sky Blue Color Kit
This Permobil M3 Corpus is a 2022 model in pristine like-new condition with only 1 mile of prior use. Featuring a 20″W × 21″D seat (adjustable upon request), it’s equipped with full power seating including ActiveHeight® seat elevation, 50° posterior tilt, 180° power recline and power legrest elevation . The M3 is engineered for comfort, control, and stability with flat-free 14″ tires, advanced FlexLink suspension, and the compact M3 base for tight indoor navigation. Powered by a Group 34 battery pair and controlled via a Permobil Color Joystick Module (PJSM), this M3 also features the ICS switchbox for power seat function management.
Condition: Certified Pre-Owned
Fully tested, detailed, and ready to ship. Perfect battery health. No error codes. Excellent cosmetic and mechanical condition.
Key Features
- Drive Base: M3 Base Corpus – M3 MPO, MWD M3 power base set up for multiple power seat functions, max speed: 6 mph, weight capacity: 300 lb.
- Seating: Corpus Power Seating – 12″ Elevation, 50° Tilt, 180° Recline, 90° – 180° Power Legrest Elevation
- Controls: Permobil PJSM Color Joystick + ICS Seat Function Keypad
- Cushion & Backrest: Corpus Ergo Stretch-Air Seat + Back Cushion Set
- Supports: BodiLink Premium Lateral Pelvic Thigh Supports ( 12”W x 3.5”T)
- Armpads: Corpus Leatherette Arm Pads
- Batteries: Group 34 Gel, freshly installed. Charger Included.
- Tires: Flat-Free 14″ Rear Tires, Standard Tread
Highlights
Made for More: The M3 Corpus is engineered for better posture, reduced fatigue, and greater comfort throughout the day. FlexLink™ suspension and compact base design enable stable indoor and outdoor performance.
ActiveHeight™: Get up to 12″ of elevation with maintained drive capability up to 3.2 mph. Ideal for transfers, elevated access, and dynamic environments.
Specifications
Maximum User Weight | 300 lbs |
---|---|
Top Speed | 6 mph |
Seat Width | 17″–23″ |
Seat Depth | 14″–22″ |
Drive Range | 16–20 mi |
Turning Radius | 20.5″ |
Ground Clearance | 3″ |
Base Width | 24″ |
Base Length | 35.5″ |
Seat Elevation | 12″ ActiveHeight® |
Posterior Tilt | Up to 50° |
Recline | 85°–180° (power) |
Legrest Elevation | 85°–180° |
Seat-to-Floor Height | 17.5″, 18.5″, or 19.5″ |
Drive Electronics | R-Net 120A |
Batteries | Group 34 Gel |
Weight with Batteries | 385 lbs |
Permobil M3 Model 2 DEMO
Quality Assurance Checklist
- ✅ Joystick and keypad fully functional
- ✅ All seat functions verified – tilt, recline, elevate, legs
- ✅ Batteries hold charge at full capacity
- ✅ No error codes, warnings, or malfunctions
- ✅ Tires inspected, no wear or flat spots
- ✅ Upholstery and supports in like-new condition
- ✅ Frame and casters free of damage
Shipping & Support
Free U.S. Shipping: Ships crated and fully assembled within 3 business days.
International Shipping: Available via air (7–10 days) or sea (30–45 days). Customs duties may apply. Please message us for a quote.
Support: We offer setup help, sizing adjustments, and lifetime customer service.
Drive Config | Mid – Wheel Drive |
---|---|
Condition | Refurbished |
MPN | M3, M3 Corpus, M3 Corpus 2, M3 MPO, 109047-99-0 |
Batteries | Group 34 AGM GEL – Pair |
Backrest Cushion | Stretch-Air Cushion – Corpus Ergo Back + lateral wedges |
Top Speed | 6 mph |
Armpads | Corpus Leatherette |
Seat Elevator | ActiveHeight Power Adjustable Seat Height – 12” Travel |
Joystick Module | Permobil Color Joystick Module (PJSM) |
Personalize | Yes |
Legrest | Corpus Power Legrest Elevation |
Accessory | Permobil UniTrack USB Charger |
Maximum Load Capacity | 300 lb |
Recline | 180° Power Recline |
Manufacture Date | January 25, 2022 |
Seat Function Keypad | ICS Switchbox |
Drive Tires | Flat Free Tire 3”W x 14”T Black – Standard Tread |
Joystick Mount | Right – Swing Away (Can be moved to left side upon request) |

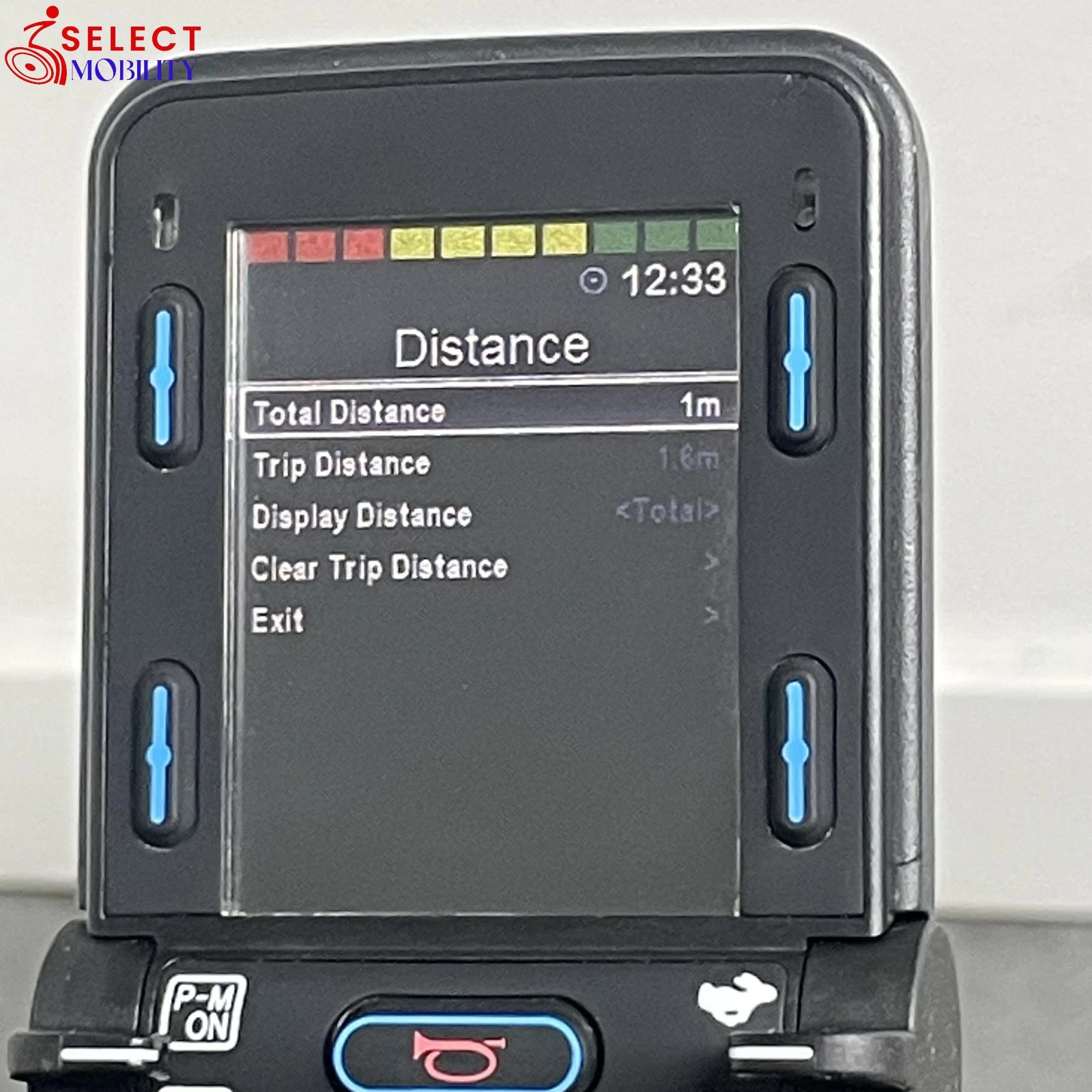

Mileage | 1 Mile (ODO) |
Color | Blue |
Seat Dimensions | 20″ W × 21″ D (adjustable upon request) |
Base | M3 Base Corpus – M3 MPO |
Brand | Permobil |
Type | Power Wheelchair |
Thigh Supports | BodiLink Premium LPTS Pad (G), Stretch-Air – 12”W x 3.5”T pads |
Model | M3 Corpus |
Tilt | 50° Power Tilt (Posterior) |
Seat Cushion | Permobil Corpus Ergo Air Seat Cushion |
Number of Wheels | 6 |
Country/Region of Manufacture | Sweden |
Personalization Instructions | Specify desired seat size (Width × Depth) within range: 16.5–22″ W × 14–22″ D. If no size is provided, chair will ship with current configuration (20″ × 21″) |
